Udor – GAMMA105CC – GAMMA-105/CC Plunger Pump

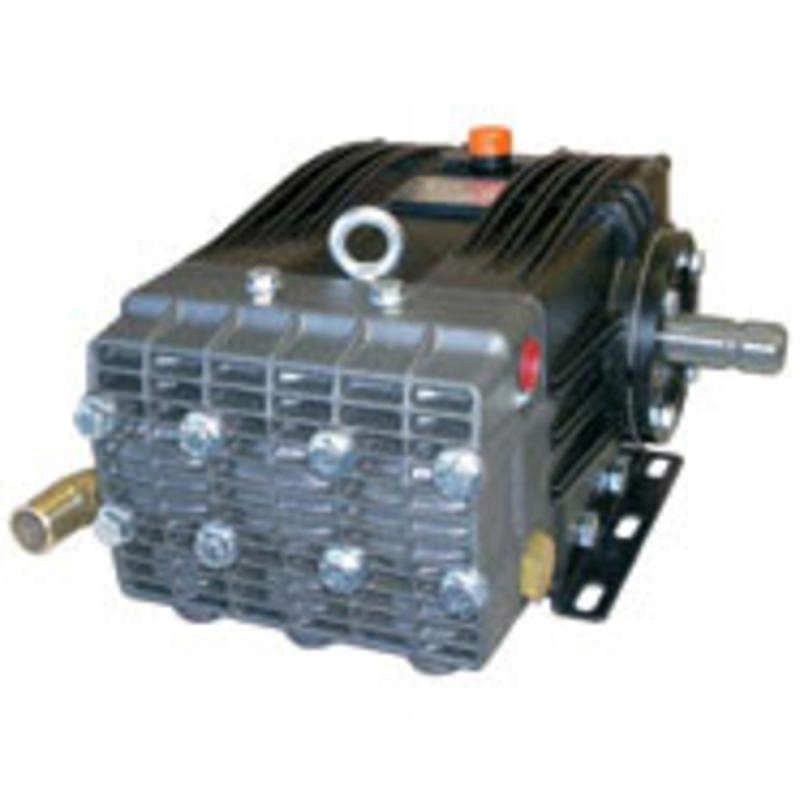

Udor GAMMA-105/CC Plunger Pump
28 GPM, 850 PSI, 15 HP Electric Power Requirement.
Three Cylinder Plunger Pump of Anodized Aluminum Construction with Solid Ceramic Plungers and Dual 1-3/8″in., 6-Spline Male PTO Shaft. Recommended control unit 6005.15. Max. RPM – 600. On all Thru-Shaft applications, shaft protector 1219.15 is recommended. Please Order Separately.
Features:
– Large Capacity Vented Oil Bath Crank Case
– Solid Ceramic Plungers
– Heat Treated Crank Shaft
– Stainless Steel Check Valves
1-1/4″in. Hose Barb Inlet (3-Cylinder), 2 in. Hose Barb Inlet (6-Cylinder)
– (2) 3/4″in. Outlets (3-Cylinder), (4) 3/4″in. Outlets (6-Cylinder)
– Industrial Quality Tapered Roller Bearings
– High Strength Aluminum Alloy Connecting Rods
– Max. Fluid Temp. 160° F
– Replaceable Teflon Coated Body Guides
