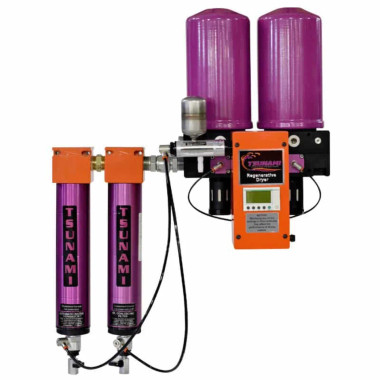

Tsunami 40 CFM (10Hp) Tsunami Regenerative Drying System
The Ultra-10 Series Regenerative Dryer is rated for 40 CFM airflow, and fitted for 10 Hp compressors. The Ultra-10 system uses a Programmable Logic Controller (PLC) to cycle the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.
Features
-
2-stage Pre-filtration; Water Separator, Oil Coalescing Filter.
- Molecular Sieve Desiccant.
- Programmable Logic Controller.
- Pneumatic Drains.
- Purge Exhaust Mufflers.
- Wall Mounting Brackets.
Specifications
- Min/Max Air Inlet Temperature: 150°F
- Min/Max Operating Pressure: 80/175 PSI
- Power Requirement: 120V
- Rated For 10 Hp Compressors
| MAX CFM | ITEM | DRAIN | NPT | WEIGHT | DIMENSIONS (HWD) | MOUNT |
| 40 | 21999-0710 | Pneumatic | 1″ INLET / OUTLET | 73 lbs | 30″ x 30″ x 12″ | Wall |
Downloads
Instruction Manual
Spec Sheets
Catalog
*Special Note: Tsunami Global products are denoted with a “-G” at the end of the part number. These Global products are intended for use outside North America.
