Description

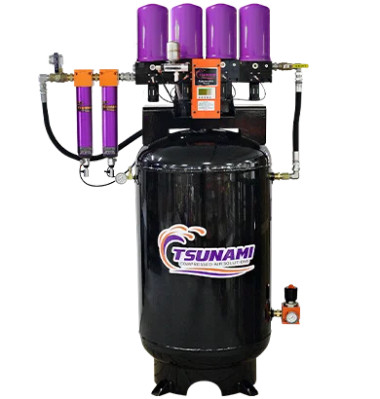

Tsunami 20Hp Tank Mounted Ultra Drying System
The Ultra-20 Series Regenerative Dryer is rated for 80 CFM airflow, and fitted for 20 Hp compressors. The Ultra-20 system uses a Programmable Logic Controller (PLC) to cycle the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.
Features
- 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter.
- Molecular Sieve Desiccant.
- Programmable Logic Controller.
- Pneumatic Drains.
- Purge Exhaust Mufflers.
- Heater pads available for cold temp applications (*Sold separately).
- 80-Gallon Storage Tank & Outlet Regulator .
Specifications
- Min/Max Air Inlet Temperature: 150°F
- Min/Max Operating Pressure: 175
- Power Requirement: 120V
- Rated For 20 Hp Compressors
| ITEM | CFM | DRAIN | NPT | WEIGHT | DIMENSIONS (HWD) | MOUNT |
| 21999-0820 | 80 | Pneumatic | 1″ IN/OUT | 381 lbs | 69″ x 51″ x 27″ | Tank – 80 gal. |
Downloads
Instruction Manual
Flyer
Catalog
