Description

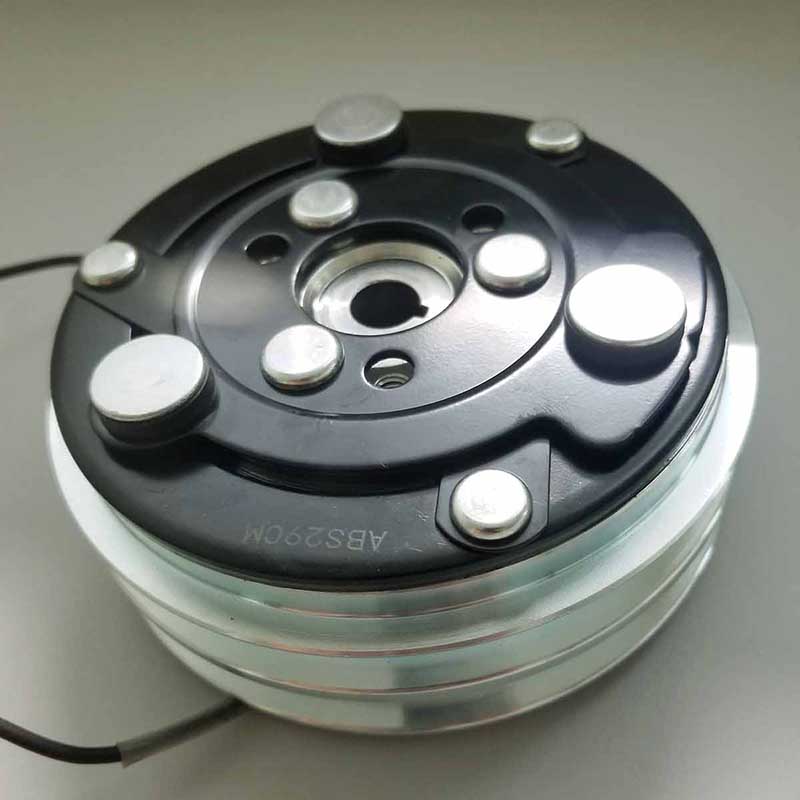

Restore cabin cooling with the 1201025 A/C clutch. This SD5H14 model features a 2-groove design with 132mm pulley diameter and 12V single-wire connector, suitable for a wide range of compressor applications in trucks and commercial equipment.
Signs You Need a New A/C Clutch
- Compressor clutch slipping or not engaging when A/C is requested
- No cold air from air conditioning system
- Grinding or squealing noise from compressor
- Burnt rubber smell from clutch area
Specifications
| Manufacturer | Sanden |
|---|---|
| Compressor Model | SD5H14 |
| Part Number | 1201025 |
| Part Type | A/C Compressor Clutch |
| Voltage | 12V |
| Groove Count | 2 grooves |
| Pulley Diameter | 132mm (5-1/4″) |
| Wire Type | Single wire connector |
Cross References
This part replaces or is equivalent to the following part numbers:
- Sanden OEM: 6519-6010, 509285
- Also known as: SD-508
Applications
This A/C clutch fits heavy-duty trucks and equipment with Sanden SD5H14 compressors:
- Freightliner, Peterbilt, Kenworth, and related heavy-duty truck applications
- Various commercial and industrial equipment with Sanden compressors
Verify your Sanden compressor model and engine configuration before ordering to confirm fitment.
