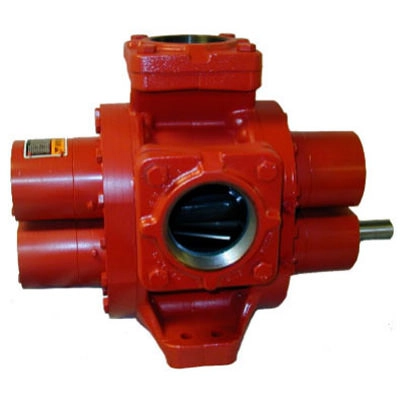

3800 Series – Petroleum Transfer Gear Pumps
Sealed outboard ball bearing pump created for harsh Oilfieldapplications including light and heavy crude oils along with Kerosenemixtures, Condensates and Hot Oil.
Features:
- Differential pressures up to 125 psi
- Up to 540 gpm (2 M3/min)
- Multi-lip grease purges seal assembly
- Maintenance indicator / Weep detection
- Triple shaft seals plus sealed ball bearings
- Over pressure relief type grease fittings
- Bi-directional rotation
- Cast iron housing
- Hardened iron gears
- Sealed ball bearings
- Steel shaft
- Helical gears for queit operation
- Bi-directional rotation
- Grease purged seals
Applications:
- Oil field applications including light and heavy crude oils
- Kerosene mixtures
- Condensates
- Hot Oil
Options:
- Available in 4 sizes
- Wearplate available
- Relief valve optional on 3848 model only
