Description

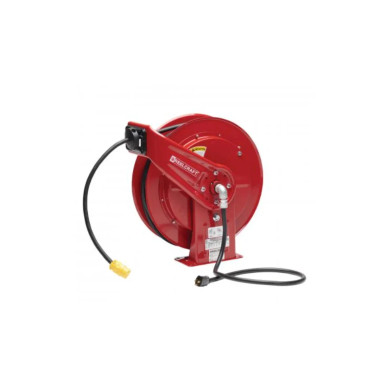

Reelcraft L 70075 123 3 12/3 75 ft. Heavy Duty Single Receptacle Power Cord Reel
Reelcraft Series L 70000 NEMA 5-15R single receptacle power cord reel includes a 15 amp single receptacle with clamp style strain relief. The reel is supplied with a 4-5 foot pigtail that includes a NEMA 5-15P inlet straight blade plug. A newly redesigned latching mechanism provides a longer service life for the latch components. The containerized drive spring offers safer and easier handling during maintenance. Two sealed ball bearings produce a smoother spool rotation and easier operation. The guide arm adjusts to seven positions for various mounting locations and applications. For indoor, non-weather tight applications only. *UL/CSA approved*
- 75 ft. 12/3 SEOOW cord with single receptacle included
- Redesigned latching mechanism provides longer service life for the latch components
- Guide rollers – The one-piece design and stainless steel pins offer greater strength and easier serviceability
- Containerized drive spring offers easier handling during maintenance
- All-steel electrical enclosure – Offers a stronger, more durable protective cover of electrical components
- Base plate and upright are constructed from 7 gauge steel; the guide arm is 11 gauge and the spool is 16 gauge steel
- Guide arm adjusts to seven positions
- Ease of operation – The high-quality, die-cast aluminum hub, and two sealed ball bearings produce a smoother spool rotation and easier operation
Reel Specifications and Dimensions
| Weight | 70 lbs |
|---|---|
| Series |
L 70000 |
| Cord Ending |
Single Receptacle |
| AWG |
12 |
| Cord/Cable Length |
75′ |
| Volts |
125 |
| Amps |
15 |
| Conductors |
3 |
| Cord/Cable Included |
Yes |
| Type |
SEOOW |
| UPC |
699567018094 |
| A | 20.25″ |
| B | 19.75″ |
| C | 7.8125″ |
| D | 3.875″ |
| E | 11.75″ |
Parts
|
Bumper Stop |
|
|
|
1-HR1004 – Adjustable Bumper Stop |
