Description

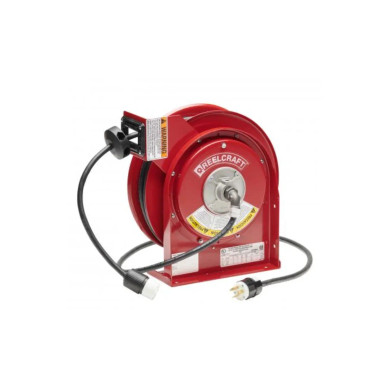

Reelcraft L 4545 123 3A 45Ft, 12 Awg/3 Cond, 20 Amp Cord Reel, Single Outlet Cord Reel, Single Outlet
Reelcraft’s Series L 4000 NEMA 5-20R single receptacle power cord reel includes a 20 amp single receptacle. The reel is supplied with a 4-5 foot pigtail that includes a NEMA 5-20P inlet straight blade plug. For indoor, non-weather tight applications only. *UL/CSA approved*
- 45 ft. 12/3 SJEOOW cord with 20 amp single receptacle included
- Base plate and upright are constructed from 14 gauge steel; the guide arm is 13 gauge and the spool is 16 gauge steel
- A heavy duty collector ring assures highest conductivity
- The reliable speed latch allows for positive locking of the spool in two positions per rotation
- Individually powder-coated steel components provide maximum protection from premature corrosion
- Robotically welded steel base offers maximum strength and consistent quality
Reel Specifications and Dimensions
| Weight | Series | Cord Ending | AWG | Cord/Cable Length | Volts | Amps | Conductors | Cord/Cable Included | Type | UPC |
| 28 lbs | L 4000 | Single Receptacle | 12 | 45′ | 125 | 20 | 3 | Yes | SJEOOW | 699567005414 |
| A | B | C | D | E | F |
| 12.875″ | 12.625″ | 8″ | 2.5″ | 9.375″ | 1.75″ |
Parts/Accessories
| Bumper Stop |
|
1-HR1004-A – Adjustable Bumper Stop |
CAD Drawings
Downloads
Catalog Page
Service Manual
Series Flyer
