Description

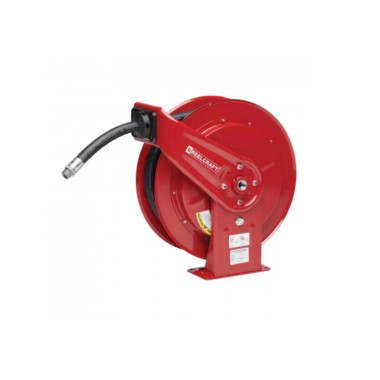

Reelcraft FHD79035 OLP 3/4 in. x 35 ft. Heavy Duty Fuel Hose Reel
Reelcraft’s spring retractable Series HD70000 fuel delivery hose reels, equipped with FKM seals, incorporate metal forms and a heavy-duty base to ensure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FHD70000 reels are supplied with our ball-bearing style swivel. NOTE: Not recommended for jet fuel.
- Compact design – Reels are 25% smaller than our heavy-duty Series 80000 reels
- Redesigned latching mechanism provides longer service life for the latch components
- Guide rollers – The one-piece design and stainless steel pins offer greater strength and easier serviceability
- Containerized drive spring offers easier handling during maintenance
- Low-pressure 3/4 in. x 35 ft. fuel hose included
- Base plate and upright are constructed from 7 gauge steel; the guide arm is 11 gauge and the spool is 16 gauge steel
- Guide arm adjusts to seven positions
- Ease of operation – The high-quality, die-cast aluminum hub, and two sealed ball bearings produce a smoother spool rotation and easier operation
Reel Specifications and Dimensions
Reel Specifications and Dimensions
| Weight | 79 lbs |
|---|---|
| Series |
HD70000 |
| Hose I.D. |
3/4″ |
| Hose O.D. |
1.188″ |
| Hose Length |
35′ |
| Pressure |
50 psi |
| Hose End |
3/4″ NPT(M) |
| Inlet |
3/4″ NPT(F) |
| Reel Outlet |
3/4″ NPT(F) |
| Hose Included |
Yes |
| Max Temperature |
150 °F |
| UPC |
699567027065 |
| Carton Dimensions |
21.25″ x 13.5″ x 22.25″ |
