Description

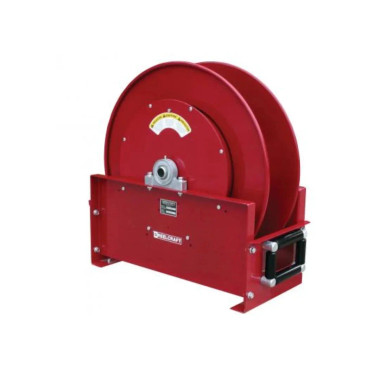

Reelcraft FE9400 OLPBW 1 in. x 50 ft. Ultimate Duty Fuel Hose Reel
Reelcraft’s spring retractable fuel delivery hose reels, equipped with FKM seals, incorporate metal forms to ensure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FE9000 reels are supplied with our ball-bearing style swivel. Contact Reelcraft for top wind and side wind hose guide models. NOTE: Not recommended for jet fuel.
- Substantial base frame – The full-width frame has the greatest amount of mounting area and overall strength of reels within its class.
- Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
- Quality finish and corrosion resistance – Individually powder-coated components offer the maximum protection from premature corrosion.
- The reel is shipped in the bottom wind position with a right-hand inlet.
NOTE: Reelcraft Series 9000 reels only ship LTL. Small parcel shipments are not available for this model.
Reel Specifications and Dimensions
| Weight | 115 lbs |
|---|---|
| Series |
9000 |
| Hose I.D. |
1″ |
| Hose O.D. |
1.500″ |
| Hose Length |
50′ |
| Pressure |
500 psi |
| Inlet |
1″ NPT(F) |
| Reel Outlet |
1″ NPT(F) |
| Hose Included |
No |
| Max Temperature |
210 °F |
| UPC |
699567003441 |
| Guide Roller Position |
Bottom Wind |
| Carton Dimensions |
28″ x 13.5″ x 29″ |
