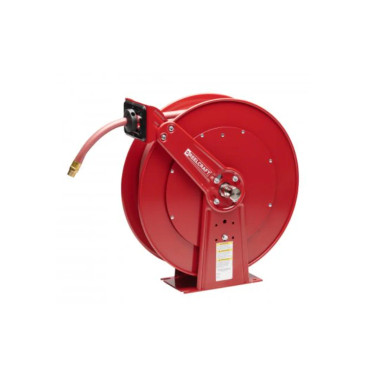

Reelcraft 83050 Olp Air/Water With Hose, 250 Psi Hose Reel, 3/4 X 50Ft Hose Reel, 3/4 x 50ft
The Reelcraft Series 80000 spring retractable, dual pedestal hose reel incorporates the most current design and manufacturing techniques ultimate performance. The Series 80000 is one of our biggest, toughest reels making it suitable for a wide variety of applications.
Features
- Robust, dual pedestal base mounts to any load-bearing surface – built for maximum durability and offers performance and longevity in the harshest conditions
- Five-in-one, heat treated aluminum casting saves space and eliminates leaks
- Two sealed ball bearings for smooth rotation of the main shaft
- Low-pressure 3/4 in. x 50 ft. PVC hose included; hose is for air or water service only
- Versatile reel inlet can be connected to the fluid source on the right or left side
- Guide arm adjusts to 4 different positions
- Structural steel components are individually powder-coated then assembled; this results in a long-lasting, corrosion-resistant finish
- Base plate constructed from 7 gauge steel, upright and guide arm are 11 gauge steel, and the spool is 16 gauge steel
- Additional Series 80000 spring retractable hose reel models include stainless steel, twin hydraulic, fuel delivery, pressure wash, and gas/cable welding
Reel Specifications and Dimensions
| Weight | Series | Hose I.D. | Hose O.D. | Hose Length | Pressure | Hose End | Inlet | Reel Outlet | Hose Included | Max Temperature | UPC |
| 88 lbs | 80000 | 3/4″ | 1.075″ | 50′ | 250 psi | 3/4″ NPT(M) | 3/4″ NPT(F) | 3/4″ NPT(F) | Yes | 150 °F | 699567000280 |
| A | B | C | D | E | F |
| 25.375″ | 24″ | 8.125″ | 10.5″ | 10″ | 6″ |
Fluid Path Materials
| Internal Fluid Path | Aluminum |
| Swivel Assembly | Steel |
| Swivel Seal | Aflas |
Parts/Accessories
|
Hose Assembly |
Bumper Stop |
Swivel Assembly |
|
S601034-50 – 3/4 in. x 50 ft. |
3-HR1004-3 – Adjustable Bumper Stop |
S602026 – Swivel Assembly |
