Description

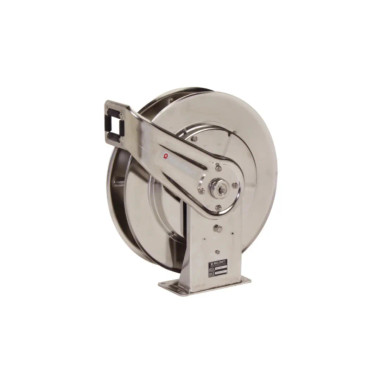

Reelcraft 7800 OLS-S 1/2 in. x 50 ft. Stainless Steel Hose Reel
The Reelcraft stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer, and industrial-solvent handling. Stainless steel reels are suitable for coastal, offshore, and on-board ships in marine applications. The swivel includes Viton O-rings. Note: Reel includes stainless steel latch parts and fluid path.
- Reinforced steel – The stainless steel guide arm and base are stamped with ribs and gussets to ensure maximum strength and lightest possible weight.
- Inlet hose is plumbed into the base to eliminate the risk of stress on the swivel
- Guide arm adjusts to seven positions
- Quality finish and corrosions resistant – Stainless steel components offer the maximum protection from premature corrosion.
Reel Specifications and Dimensions
| Weight | 41 lbs |
|---|---|
| Series |
7000 |
| Hose I.D. |
1/2″ |
| Hose O.D. |
0.75″ |
| Hose Length |
50′ |
| Pressure |
500 psi |
| Inlet |
1/2″ NPT(F) |
| Reel Outlet |
1/2″ NPT(F) |
| Hose Included |
No |
| Max Temperature |
210 °F |
| UPC |
699567013129 |
| Carton Dimensions |
23.375″ x 9.375″ x 25.5″ |
| A | 20.25″ |
| B | 19.75″ |
| C | 7.8125″ |
| D | 3.875″ |
| E | 7″ |
