Description

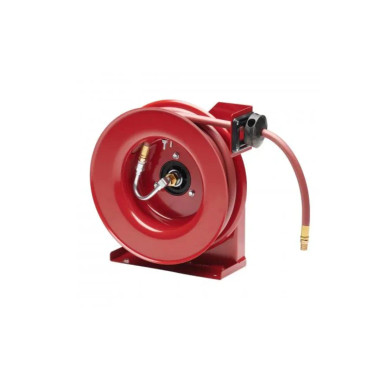

Reelcraft 4435 Olp Air/Water Hose Reel With Hose, 300 Psi, 1/4 X 35Ft Hose Reel, 1/4 x 35ft
Series 4000 reels are durable and compact for a wide range of applications with critical space requirements.
Features
- Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- The bent tube swivel design offers a smooth hose transition onto the spool
- Swivel is nested inside the spool for protection from impact and the environment
- Low-pressure 1/4 in. x 35 ft. PVC hose included; hose is for air or water service only
- Base plate and upright are constructed from 14 gauge steel; the guide arm is 13 gauge and the spool is 16 gauge steel
- The reliable speed latch allows for positive locking of the spool in two positions per rotation
- Individually powder-coated steel components provide maximum protection from premature corrosion
- Robotically welded steel base offers maximum strength and consistent quality
Reel Specifications and Dimensions
| Weight | Series | Hose I.D. | Hose O.D. | Hose Length | Pressure | Hose End | Inlet | Reel Outlet | Hose Included | Max Temperature | UPC |
| 20 lbs | 4000 | 1/4″ | 0.475″ | 35′ | 300 psi | 1/4″ NPT(M) | 3/8″ NPT(F) | 1/4″ NPT(F) | Yes | 150 °F | 699567000129 |
| A | B | C | D | E |
| 12.875″ | 12.625″ | 8″ | 2.5″ | 5.625″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Copper |
| Swivel Seal | Buna |
Parts/Accessories
|
Hose Assembly |
Bumper Stop |
Swivel Assembly |
U Bolt Kit |
|
S601001-35 – 1/4 in. x 35 ft. Low Pressure Air/Water Hose |
1-HR1004 – Adjustable Bumper Stop |
S600886 – Swivel Assembly |
S3-117440 – U Bolt Kit |
