Description

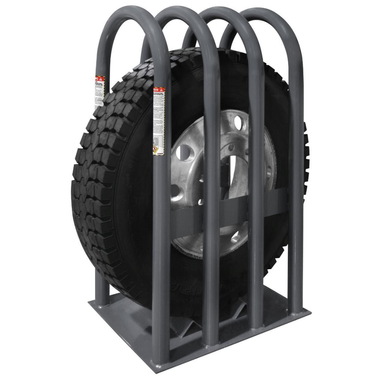

Ranger RIC-4716 4-Bar Tire Inflation Cage
The RIC-4716 inflation cage is a crucial, life-saving piece of equipment that must be used during the inflation of a tire. Tire explosions are deadly, and only a ruggedly constructed tire cage can prevent catastrophic damage in a worst-case scenario.
Features
- Accommodates hub assemblies up to 9.5” wide.
- Installs on all Ranger wheel balancers with a 36 mm shaft.
- Designed to balance wheels with a center-hole diameter from 5/8” to 1.25”.
- Kit comes with universal wheel clamp, shaft, centering cones, spacers and spin-on nut.
- 2-3/8” diameter, high-yield, seamless steel tubing.
- 4-Bar welded-steel construction.
- Solid-steel welded-steel base.
- Four tubular steel base frame supports keeps cage elevated off the floor to prevent rust and corrosion.
- Full-width angle-iron wheel cradle.
Specifications
| Max Tire Width | 16” (406 mm) |
| Max Tire Diameter | 47” (1,194 mm) |
| Height | 49.5” (1,257 mm) |
| Width | 21” (533 mm) |
| Depth | 27” (686 mm) |
| Shipping Dimensions | 30” x 24” x 60” (762 mm x 609 mm x 1,524 mm) |
| Shipping Weight | 256 lbs (116 kg) |
