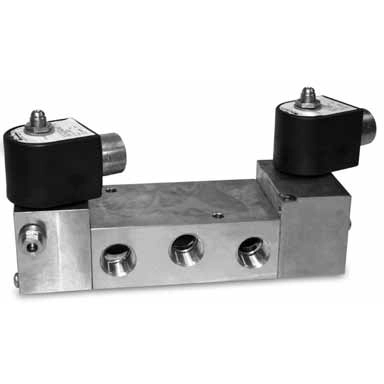

Parker – 73477BN4UN00NKHZ04C2 – 4-Way Solenoid Valve
This product may have a long lead time. Please call us to verify lead time 1-800-433-8831.
*Parker solenoid valves are custom built to every order. Parker will NOT accept returns on any solenoid valves. Please be sure you are ordering the correct valve, voltage, and seal material for your project. If you have any questions please call our sales team at 1(800) 433-8831. We are more than happy to assist you in purchasing the correct valve.
Compatible Fluids
Lubricated Air, Non-Lubricated Air, Inert Gases, Water, Hydraulic Fluids, Petroleum Products and additional fluids compatible with materials of construction. Use of non-lubricated gaseous media will substantially limit valve life.
Parker Fluid Control’s valve actuation product offering includes a variety of three- and four-way valves designed with unique features and options enhancing their performance, operational reliability and application versatility. The Series includes All-Ports-In-Body valves, Intrinsically Safe valves, Quick Exhaust valves, Direct Mount valves with NAMUR interface, Ultra Low-Power valves, along with a host of accessories and options. In addition, to satisfy the most stringent environmental demands, most valves are available in a choice of body materials including brass, stainless steel, and aluminum, as well as a variety of elastomeric seals.
| DESCRIPTION | ATTRIBUTE VALUE |
| PRODUCT TYPE | SOLENOID VALVE 4W DIRECT ACTING |
| CONFIGURATION/TYPE | 4 Way |
| OPERATION | Normally Open/Normally Closed |
| MEDIA | AIR, INERT GASES |
| PIPE/PORT SIZE | 1/2 INCH |
| CONNECTION | NPT |
| MAX OPERATING PRESSURE DIFF | 150 PSI |
| MIN OPERATING PRESSURE DIFF | 30 PSI |
| VOLTAGE/FREQUENCY RATING | 24 VDC |
| BODY MATERIAL | BRASS |
| SEALS | NBR |
| FLOW COEFFICIENT/RATING | 4 |
| ORIFICE DIAMETER | 5/8 INCH |
| ENCLOSURE | ATEX EEx m IIC T6 -1/2 INCH STAINLESS CONDUIT |
| COIL TERMINATIONS | 36 INCH CABLE GLAND |
| POWER CONSUMPTION | 2 WATTS |
| COIL INSULATION | CLASS F |
| AMBIENT TEMPERATURE | |
| FLUID TEMPERATURE | 167 F MAXIMUM |
| MOPD OIL | NOT APPLICABLE |
| MOPD WATER | NOT APPLICABLE |
| MOPD STEAM | NOT APPLICABLE |
| MOPD AIR/GAS | 150 |
