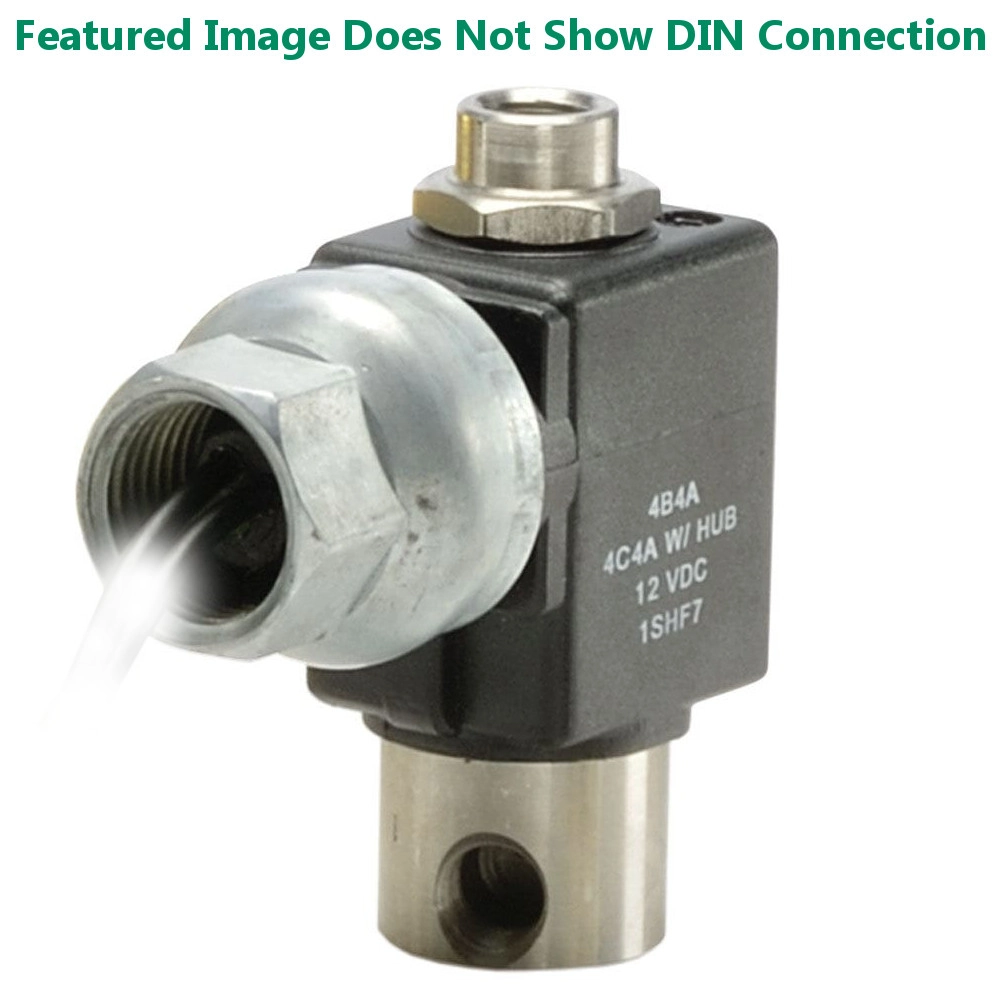

Parker – 30CU02GV4D6B – 3-Way Solenoid Valve
FCD General Catalog 3-Way Valves
204, 304, 309 Series Valves
This product may have a long lead time. Please call us to verify lead time 1-800-433-8831.
*Parker solenoid valves are custom built to every order. Parker will NOT accept returns on any solenoid valves. Please be sure you are ordering the correct valve, voltage, and seal material for your project. If you have any questions please call our sales team at 1(800) 433-8831. We are more than happy to assist you in purchasing the correct valve.
| PERFORMANCE CHARACTERISTICS | |
|---|---|
| SERIES | 204/304 Series |
| VALVE TYPE | 3-Way |
| FUNCTION | Universal |
| PORT SIZE | 1/8 inch |
| VOLTAGE | 110/50-120/60 |
| BODY MATERIAL | 303 Stainless |
| SEAL MATERIAL | FKM |
| ORIFICE MAIN (INCH) | 1/16 |
| FLOW FACTOR MAIN (CV) | 0.09 |
| POWER (WATTS) | 8 Watt (DC) |
| COIL TYPE | DIN Form A |
| MAXIMUM PRESSURE DIFFERENTIAL (PSI) | 100 psi (DC) |
| MECHANICAL OPTION | n/a |
| NUMBER OF PORTS | 3 |
| ACTUATION | Direct Acting |
| MEDIA | General Purpose for Air, Liquids and Gases |
| PORT TYPE | NPT |
| ORIFICE EXHAUST (INCH) | n/a |
| FLOW FACTOR EXHAUST (CV) | n/a |
| ORIFICE 2 SIZE (INCH) | 1/16 |
| FLOW FACTOR 2 (CV) | 0.1 |
| MINIMUM PRESSURE DIFFERENTIAL (PSI) | 0 |
| MINIMUM FLUID TEMPERATURE (F) | 32 |
| MAXIMUM FLUID TEMPERATURE (F) | 240 |
| COIL PROTECTION MODE | Class H |
