Description

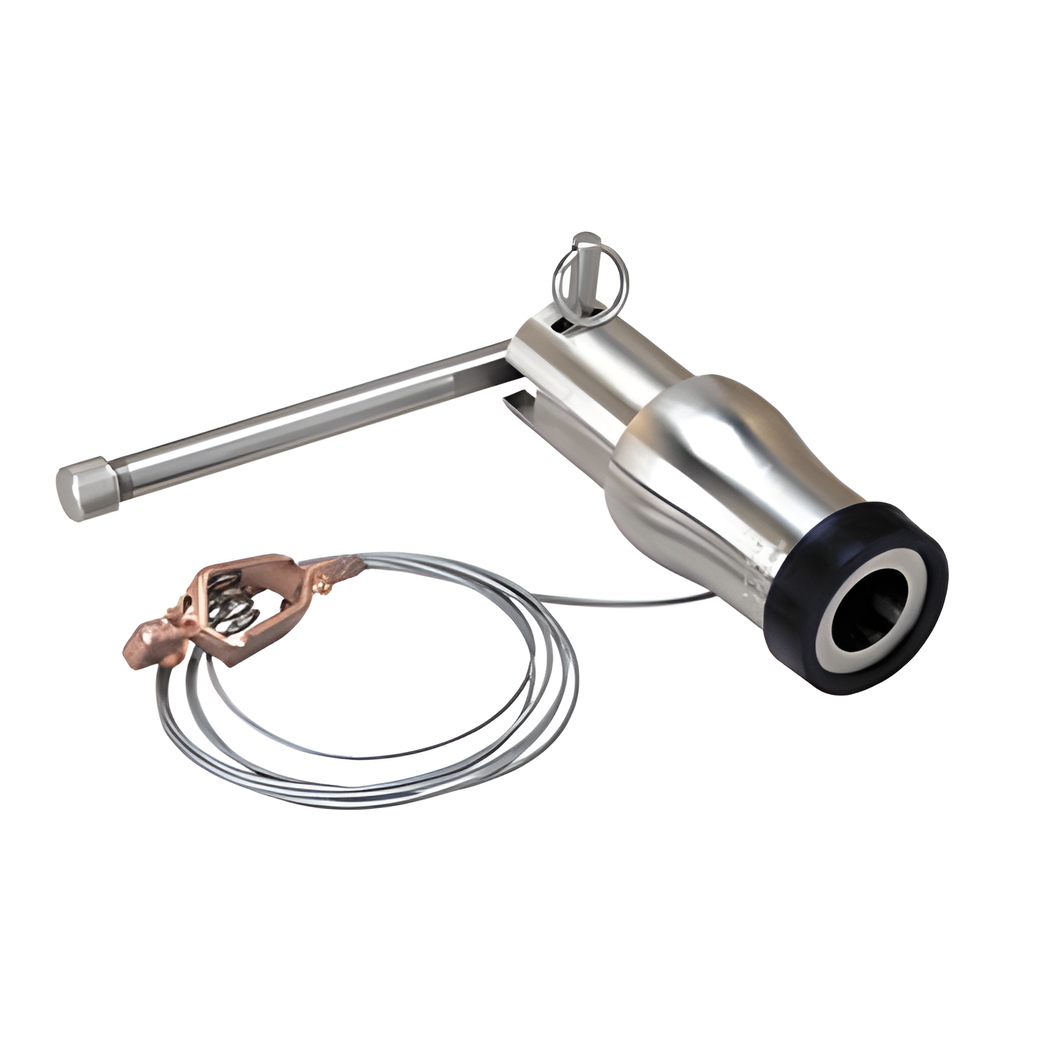

OPW – BDN – Vehicle Defueling Nozzle
OPW has developed a new tool to safely depressurize vehicles. This valve can also be used to transfer fuel from one vehicle to another in the event of a breakdown on the side of the road, or be used in areas where no refueling station is available. This nozzle should be hooked up to a check valve, three-way valve, hose and appropriate storage tank or fueling device.
Materials of Construction:
- Body: – 316L stainless steel
- Internal Components: – 316L stainless steel
- Seals: – specially formulated polymers and elastomers specific to high pressure NGV applications.
Features:
- Durable Corrosion-Resistant Construction: – stainless steel and brass provide improved durability and corrosion resistance in the harsh environments.
- Jaw-Lock Connection : – to ensure against damage to the receptacle during the defueling process.
- User-Friendly Operation: – low force actuation lever provides enough mechanical advantage to open receptacle check valves with up to 4500 psi pressure differentials.
- Good for both Filtered and Non-Filtered Receptacles : – shaft extenders are included inside the handle to open receptacle check valves.
- SAE-4 O-Ring Outlet Port: – allows for standard fittings to be used when connecting nozzle to hose.
- Connects to NGV-1 style receptacles (BDN)
- Individually Leak Tested and Inspected with Traceable Serial Numbers
