Description

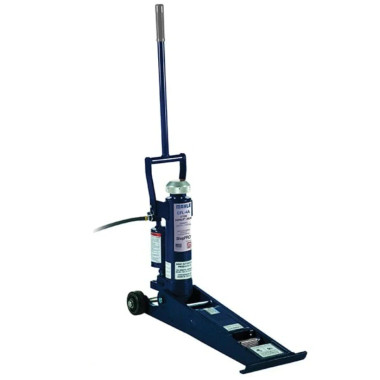

Mahle CFL-4A – 4 ton Forklift Jack – Air Assist
Features
- Two position lift pad that easily adjusts to handle flat or edged surfaces.
- Low starting height of 2-1/4″ allows maximum flexibility.
- Hold-to-Run release knob provides a slow descent rate with precise operator control.
Specifications
| Capacity | 8,000 lb (3,629 kg) |
| Maximum Lift Height | 16 in (41 cm) |
| Power | Air/Hydraulic |
| Required Air Pressure | 155 psi (10.7 bar) |
| Reach (Raised Position) | 7 in (18 cm) |
| Distance from Hydraulic Cylinder to Lift Pad) | |
| Width | 8 in (20 cm) |
| Starting Pad Height (Lift Arm Noch) | 2.3 in (5.8 cm) |
| Starting Pad Height (Serrated Lift Pad) | 2.5 in (6.3 cm) |
| Shipping Weight | 71 lb (32 kg) |
Downloads
Flyer
