Description

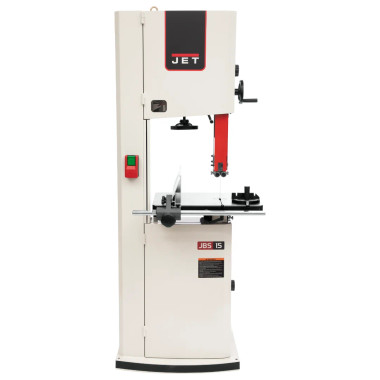

JET Tools 714650 JWBS-15-3, 15″ Bandsaw, 3HP, 230V
The JET JWBS-15-3 is a 15″ steel-frame bandsaw driven by a 3HP 230V motor for heavier resawing and demanding woodworking, with up to 14 inches of cutting height. It pairs a heavy-duty cast iron fence with a four-sided rack-and-pinion guide post for stable, accurate blade support.
Features
- Blade tracking window provides clear view of blade during tracking.
- Cast iron handwheels and ergonomic-designed knobs make adjustments smooth and easy.
- Cast iron trunnion for maximum support and stability.
- Conveniently located dual 4″ dust collection ports catch dust and chips at the source.
- Easy-to-read blade tension scale can be viewed through upper door window.
- Heavy duty tensioning with quick release and three settings: full tension, partial tension, and full release.
- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support.
- Round table insert features leveling screws for precise adjustment.
- Single knob adjustment simplifies the blade tracking process.
- Table tilts 5° left and 45° right to accommodate a wide variety of cuts.
Specifications
| Stock Number | JT-714650 |
| Band Saw Size/Wheel Diameter (In.) | 14-3/4 |
| Blade Speed (SFPM) | 3100 |
| Cutting Capacity Height (In.) | 14 |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Model Number | JWBS-15-3 |
| Motor Amps | 12 |
| Motor Power (HP) | 3 |
| Recommended Circuit Size (Amps.) | 20 |
| Table Height from Floor (In.) | 35 |
| Table Size (L x W) (In.) | 21-1/5 x 16 x 2 |
| Weight | 446 |
WARNING: California Prop 65
Downloads
Manual
