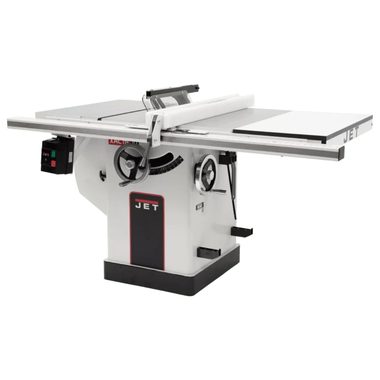

JET Tools 708674PK XACTA Saw Deluxe 3HP 1Ph 230V, 30″ Fence System
The JET 708674PK XACTA Saw Deluxe is a 10″ cabinet table saw with a 30″ rip fence system and left and right cast iron extension wings for shop woodworking. It runs on a 3HP 230V single-phase motor, features a quick-release riving knife, an integrated arbor lock, and a Poly-V belt drive with shrouded blade for efficient dust collection.
Features
- Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters.
- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement.
- Hinged motor cover on cabinet gives quick access to the motor and belts.
- Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt.
- Left and right cast iron extension wings.
- Powder coated paint for a long-lasting, chip-resistant finish.
- Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning.
- Rail-mounted magnetic switch is easy to reach and provides overload protection.
- Wide stance heavy-duty trunnion for stability and smooth blade positioning.
Specifications
| Stock Number | JT-708674PK |
| Blade Diameter (In.) | 10 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Rip Right of Blade (In.) | 30 |
| Maximum Width of Dado (In.) | 13/16 |
| Miter Gauge Type | Deluxe |
| Model Number | JTAS-10XL30-DX |
| Motor Amps | 14.5 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Style (Type) | Cabinet |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 10 |
| Table Size (L x W) (In.) | 29 x 20 |
| Table Type | Cast Iron |
| Weight | 490 |
WARNING: California Prop 65
Downloads
Manual
