Description

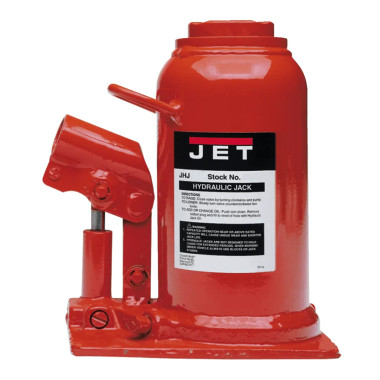

JET Tools 453323K JHJ-22-1/2L, 22-1/2 Ton, Low Profile, (2 pcs)
The JET JHJ-22-1/2L is a 22-1/2-ton low-profile hydraulic bottle jack sold as a set of two, suited to lifting and positioning heavy loads in tight clearances. It operates in upright, angled, or horizontal positions and meets ANSI/ASME B30.1 and PALD-1 standards.
Features
- Complies with ANSI/ASME B30.1 and PALD-1 Standard.
- Heavy-duty bases are electrically welded providing a stable platform.
- Hydraulic system is protected from damage by internal by-pass mechanism.
- Industrial-duty construction permits use in extreme climates.
- Lifting, pushing, spreading, bending, pressing or straightening capabilities.
- Operating temperature range from -4°F to 158°F.
- Precision machined and polished cylinders provide non-abrasive, leak-free, durable performance.
- Pump handle included.
- Upright, horizontal or angled operating positions increase versatility.
Specifications
| Stock Number | JT-453323K |
| Base Dimensions (L x W) (In.) | 7-1/4 x 5-1/16 |
| Head Diameter (In.) | 1-1/2 |
| Load Capacity (Tons) | 22-1/2 |
| Maximum Height (In.) | 12 |
| Minimum Height (In.) | 7-1/8 |
| Model Number | JHJ-22 1/2L |
| Piston Height (In.) | 3-3/8 |
| Piston Lift (In.) | 3-3/8 |
| Weight (Lbs.) | 23 |
