Description

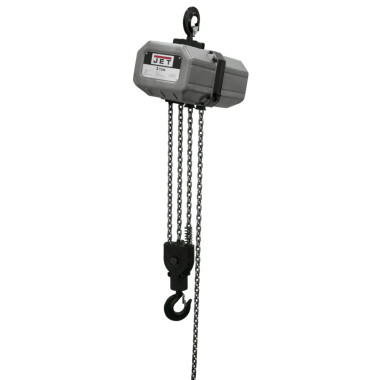

JET Tools 333000 3SS-3C-30, 3 Ton, 3Ph, 30′ Lift, 230/460V, Prewired 460V
The JET 333000 (model 3SS-3C-30) is a 3-ton three-phase electric chain hoist from the SSC Series, designed for commercial and industrial lifting. It operates on 230/460V power (prewired for 460V) and provides a 30-foot lift, with upper and lower limit switches and a sealed, maintenance-free gear train.
Features
- 24 volt push button controller with cable strain relief system for durability and reliability.
- All steel construction.
- NEMA 4X compliant push button control pendants.
- Durable powder coat finish.
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability.
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep.
- Thermal overload protection.
Specifications
| Stock Number | 333000 |
| Capacity (Lbs.) | 6600 |
| Duty Cycle (%) | 30 |
| Duty Cycle Rating | H4 |
| Lift (Ft.) | 30 |
| Lifting Speed (FPM) | 8 x 24 |
| Load Capacity (Tons) | 3 |
| Max. Number of Starts (Per Hr.) | 180 |
| Max. On-Time (Min. / Hr.) | 18 |
| Motor (HP) | 2-1/7 HP, 460V, 3 Ph |
| Motor Phase | 3 |
| Overload Protection | Yes |
| Weight (Lbs.) | 240 |
| Headroom (In.) | 31-1/2 |
| Overall Width (In.) | 11.81 |
| Motor Current (Amps) | 16 |
