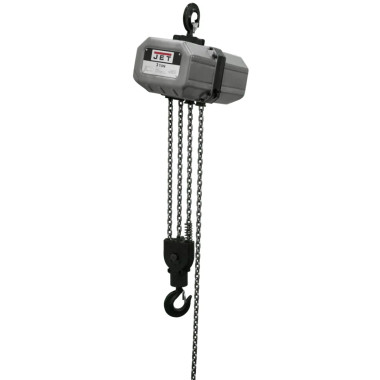

JET Tools 331000 3SS-3C-10, 3 Ton, 3Ph, 10′ Lift, 230/460V, Prewired 460V
The JET 3SS-3C-10 is a three-phase SSC Series electric chain hoist rated for 3 tons with a 10-foot lift, designed for commercial and industrial material handling. It runs on 230/460V and ships prewired for 460V. The SSC Series is intended for indoor use, not for wet or outdoor environments.
Features
- 24 volt push button controller with cable strain relief system for durability and reliability.
- All Steel Construction- Fully enclosed, all steel plate construction with a durable powder coat finish keeps out moisture, dust and debris lengthening the life of the hoist.
- Certification- Load tested to 125% of capacity with certificate.
- Control Pendant- 24 volt push button controller with cable strain relief system for durability and reliability in industrial and commercial settings.
- Controls- NEMA 4X compliant push button control pendants.
- DC Electro-Magnetic Brake- An industry-proven safety feature that secures the load even if power is interrupted to the hoist.
- Durable powder coat finish.
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability.
- JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are NOT rated or designed for outdoor use or wet environments.
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity.
- Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep.
- Thermal Overload Protection- Protects the hoist from overheating in low voltage situations.
Specifications
| Stock Number | JT-311000 |
| Capacity (Lbs.) | 6600 |
| Duty Cycle (%) | 25 |
| Duty Cycle Rating | H3 |
| Lift (Ft.) | 10 |
| Lifting Speed (FPM) | 6.6 |
| Load Capacity (Tons) | 3 |
| Max. Number of Starts (Per Hr.) | 150 |
| Max. On Time (Min. / Hr.) | 15 |
| Model Number | 3SS-1C-10 |
| Motor (HP) | 1-3/4 HP, 230V, 1 Ph |
| Weight (Lbs.) | 207 |
| Headroom (In.) | 31-1/2 |
| Overall Width (In.) | 11.81 |
| Motor Current (Amps) | 16 |
