Description

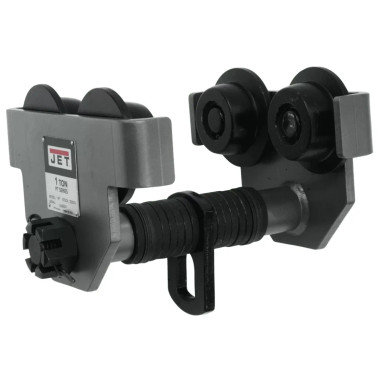

JET Tools 252060 10-PT, 10 Ton, Heavy Duty Manual Trolley
The JET 10-PT is a heavy-duty manual push trolley rated for 10 tons that carries a hoist along an I-beam or wide-flange beam. Steel wheels and sealed bearings move the load by hand, and the trolley adjusts to a range of beam flange widths.
Features
- Built-in bumper guards on the side plates increase safety and extend trolley life.
- Certification- Load tested to 125% of capacity with certificate.
- Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards.
- Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers.
- Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement.
- Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection.
Specifications
| Stock Number | JT-252060 |
| Capacity (Lbs.) | 22000 |
| Hook Mount Headroom (In.) | 10-5/6 |
| Load Capacity (Tons) | 10 |
| Maximum Beam Flange Width (In.) | 4-3/4 |
| Minimum Beam Curve Radius (In.) | 67 |
| Minimum Beam Flange Width (In.) | 4-3/4 – 8 |
| Model Number | 10-PT |
| Weight (Lbs.) | 211 |
| Wheel Diameter (In.) | 6 |
| Max. Hook Size (W/in.) | 3-2/9 |
| Minimum Beam Height (In.) | 6 |
| Overall Dimensions (L x W x H / in.) | 18 x 17 x 11-3/5 |
