Description

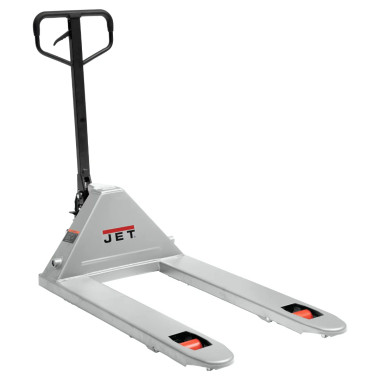

JET Tools 161009 PT-2748JA, 27″ x 48″ 5500LB Pallet Truck
The JET PT-2748JA is a manual hydraulic pallet truck rated for 5,500 lbs, with 27″ x 48″ forks for moving wider palletized loads in a shop or warehouse. Welded steel construction and a 2-1/2-inch lowered fork height ease pallet entry, while a 180-degree turning radius aids maneuvering in tight aisles.
Features
- 2/12 inch low profile allows for easy engagement of pallets.
- Lower material in a controlled decent with either hand or foot control for operator convenience.
- Overload Protection prevents lifting loads past maximum capacity.
- Polyurethane 6-1/4 x 2 inch steer wheels for non marking of floors and quieter rolling.
- Pumps designed for any industrial environment.
Specifications
| Stock Number | JT-161009 |
| Capacity (Lbs.) | 5500 |
| Fork Width (In.) | 6-1/3 |
| Load Wheel Size (OD x W) (In.) | 2-1/2 x 3-11/16 |
| Lowered Height (In.) | 2.56 |
| Maximum Height (In.) | 6-11/16 |
| Model Number | PT-2748JB |
| Overall Dimensions (L x W x H) (In.) | 63 x 27 x 45-1/8 |
| Overall Fork Dimensions (L x W) (In.) | 48 x 27 |
| Steer Wheel Size (In.) | 6-1/4 x 2 |
| Turning Radius (Deg) | 180 |
| Weight (Lbs.) | 147 |
WARNING: California Prop 65
Downloads
Manual
