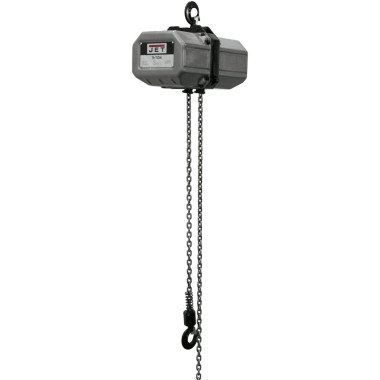

JET Tools 121140 1/2SS-1C-20, 1/2 Ton, 1Ph, 40′ Lift, 115/230V, Prewired 230V
The JET 1/2SS-1C-20 is a 1/2-ton single-phase electric chain hoist from the SSC Series, built for material lifting in commercial and industrial settings. It runs on 115/230V power (prewired for 230V) and is configured with a 40-foot lift. A slip clutch and thermal overload system guard against overloading and overheating during repeated duty cycles.
Features
- 24-volt push button controller with cable strain relief system for durability and reliability.
- All steel construction.
- NEMA 4X compliant push button control pendants.
- Durable powder coat finish.
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability.
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep.
- Thermal overload protection.
Specifications
| Stock Number | JT-121140 |
| Capacity (Lbs.) | 1102.31 |
| Duty Cycle (%) | 25 |
| Duty Cycle Rating | H3 |
| Lift (Ft.) | 40 |
| Lifting Speed (FPM) | 19 |
| Load Capacity (Tons) | 1/2 |
| Max. Number of Starts (Per Hr.) | 150 |
| Max. On-Time (Min. / Hr.) | 15 |
| Motor (HP) | 7/8 HP, 115 / 230V, 1 Ph |
| Motor Phase | 1 |
| Overload Protection | Yes |
| Weight (Lbs.) | 120 |
| Headroom (In.) | 20-3/16 |
| Overall Width (In.) | 10,24 |
| Motor Current (Amps) | 8 |
