Description

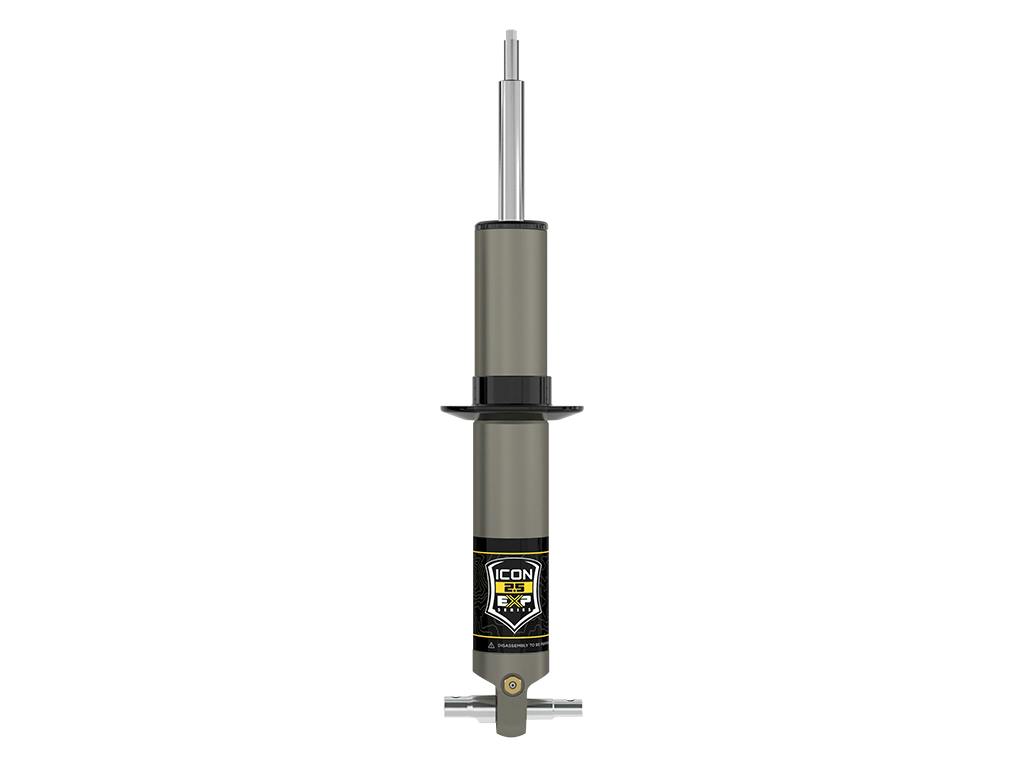

EXP Series shock absorbers by ICON combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the vehicle’s factory coil spring and other components.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
- Vehicle specific design for the 2019-2026 GM 1500 trucks
- 100% Bolt-on – no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
- Adjustable ride heights from 2.375-3.75” of front lift over stock with the use of snap ring
- Utilizes factory coils
- 2.5 Aluminum Series Shock with Internal Reservoir
- CNC machined 6061 aluminum components with a black anodize finish
- PTFE lined bearings for extended longevity and minimal deflection
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish
Information:
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75” Backspace / 0mm Offset
Application Summary:
| Year | Make/Model |
|---|---|
| 2019-2026 | Chevrolet Silverado 1500 |
| 2022 | Chevrolet Silverado 1500 LTD |
| 2022 | Chevrolet Silverado 1500 Nueva |
| 2019-2026 | GMC Sierra 1500 |
| 2022 | GMC Sierra 1500 Limited |
| 2022 | GMC Sierra Nueva |
