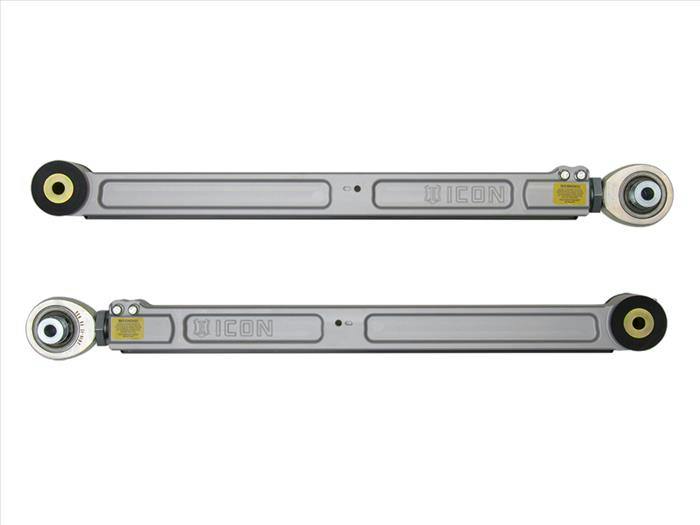

ICON Vehicle Dynamics 54000 07-14 FJ/03-23 4RNR/08-21 LC 200/03-23 GX BILLET LOWER TRAILING ARM KIT

Description

ICON billet trailing arms are light, strong, and engineered to improve off-road ride quality. Built with CNC machined 6061 aluminum, they feature PTFE-lined rod ends, replaceable nylon rock sliders for protection, and on-vehicle adjustment.

ICON’s Billet Aluminum Rear Trailing Arms for the Toyota FJ Cruiser, 4Runner, 200 Series Land Cruiser, and Lexus GX are a great replacement for weak factory lower links. These trailing arms are light, strong, and have been engineered to increase the off-road ride quality the vehicle. Constructed out of 6061 CNC-machined billet aluminum, these arms also stand out when bolted up on the vehicle. They include 16T Rod Ends that have a load rating of over 40,000 lbs of pressure as well as a dual rate bushing on the axle side for excellent articulation characteristics with minimal deflection. A replaceable nylon rock slider is incorporated into the design of the arm to prevent any hang-ups on the trail.

• On vehicle length adjustment for different ride heights and pinion angles using ICON’s Double Adjuster System
• Vehicle specific, high clearance design for reduced link contact with obstacles
• Replaceable Nylon Rock Slider to protect the link from damage
• CNC machined 6061 aluminum construction
• Large FK Bearing JMX16T PTFE-lined rod ends
• Greaseable, multi-piece polyurethane bushings for maximum angularity and noise isolation
• Covered by ICON’s Limited Lifetime Warranty

Application Summary:
