Description
The ICON 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation and improves handling of the truck by maintaining consistent caster angles and eliminating bushing bind in the stock radius arms.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
- 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
- Improves front end articulation and overall drivability
- Allow on-vehicle caster adjustment via ICON double adjusters in lower links

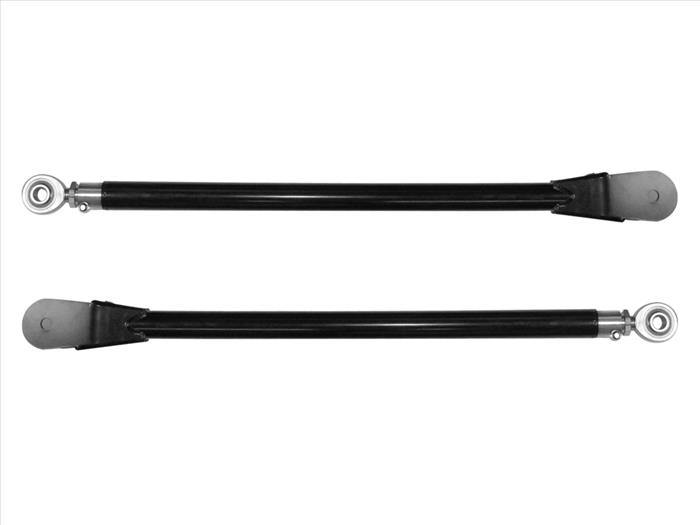

- Lower links are constructed from CNC machined 2” x .188” wall DOM steel tubing
- PTFE lined FK spherical bearings eliminate deflection
- Corrosion resistant semi-gloss black powder coat finish
- Fabricated components covered under ICON’s Limited Lifetime Warranty
Information:
APPLICATION NOTE 485: Compatible with 2.5″-7″ of front lift
Application Summary:
| Year | Make/Model |
|---|---|
| 2005-2026 | Ford F-250 Super Duty |
| 2005-2026 | Ford F-350 Super Duty |
