Description

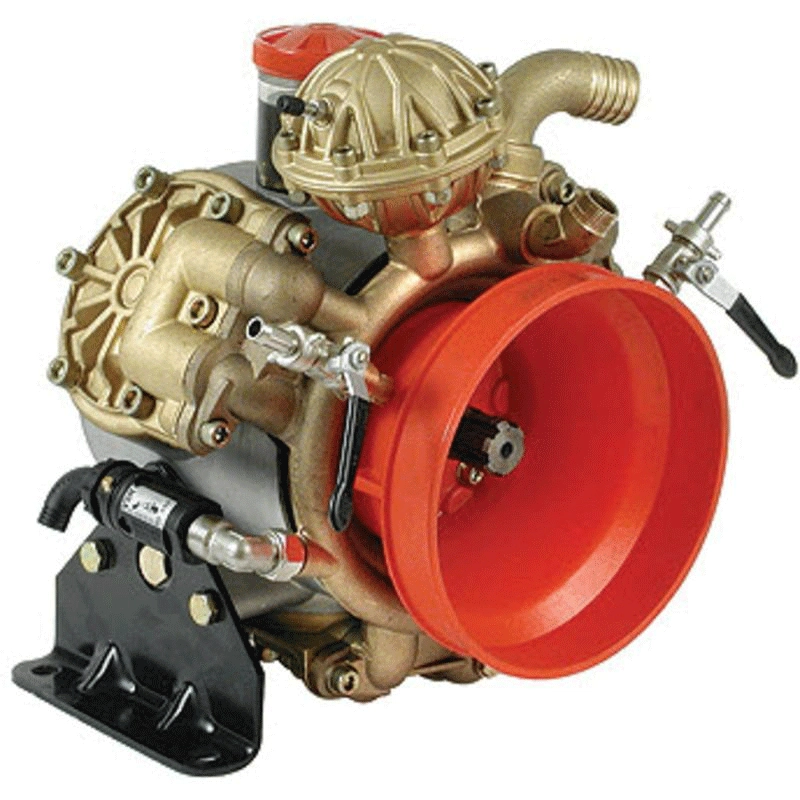

Hypro – 9910DBS110 – DBS110 Diaphragm Pump
28.5 gpm, 725 psi.
External bronze manifolds and brass heads. 1-&rac12; in. HB Inlet, 3/4 in. NPT Outlet. 1-3/8 in. 6 Splined male double-ended shaft.
Heavy-duty, high pressure diaphragm pumps. These industrial-built pumps are designed to handle all of your high pressure and volume diaphragm pump needs with minimal maintenance required. Their innovative, external manifold design allows for normal servicing to be done from one side of the pump, thereby eliminating the need for dismounting.
These pumps are excellent for chemical spraying where higher pressures are desired, such as insecticide spraying, air blast and tall tree sprayers. They also work great for high pressure cleaning and disinfecting applications, such as poultry house cleaners.
