Description

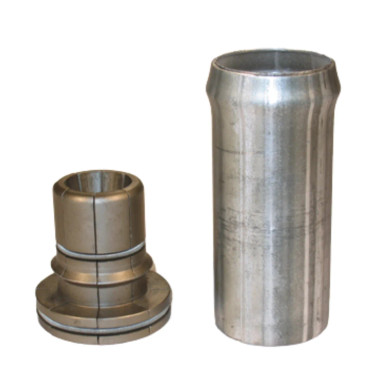

Huth 460 Segment, Bead Forming 1-1/4″
*Each piece is sold separately
| NO. | COMMENTS | FINGER NO. | REPLACEMENT RUBBER O’RING | REPLACEMENT STEEL O’RING | |
| 460 | 1-1/4″ | Used with 575 Arbor and 570 Spacer Or 496 Arbor (1685 Model Only) |
660 | 2 – 862 | 2 – 867 |
| 461 | 1-1/2″ | Used with 500 Arbor Or 495 Arbor (1685 Model Only) |
661 | 2 – 862 | 2 – 867 |
| 462 | 1-3/4″ | Used with 572 Arbor Or 508 Arbor with 498 Tip Or 497 Arbor (1685 Model Only) |
662 | 3 – 863 | 2 – 868 |
| 463 | 2″ | Used with 573 Arbor Or 508 Arbor with 499 Tip Or 497 Arbor (1685 Model Only) |
663 | 1 – 861, 1 – 863 | 1 – 866, 1 – 868 |
| 464 | 2-1/4″ | Used with 573 Arbor Or 508 Arbor with 499 Tip Or 497 Arbor (1685 Model Only) |
664 | 1 – 862, 1 – 864 | 1 – 867, 1 – 869 |
| 465 | 2-1/2″ | Used with 573 Arbor Or 508 Arbor with 499 Tip Or 497 Arbor (1685 Model Only) |
665 | 1 – 863, 1 – 864 | 1 – 868, 1 – 869 |
| 466 | 3″ | Used with 573 Arbor Or 508 Arbor with 499 Tip Or 497 Arbor (1685 Model Only) |
666 | 1 – 864, 1 – 873 Urethane |
|
| 467 | 3-1/2″ | Used with 573 Arbor Or 508 Arbor with 499 Tip Or 497 Arbor (1685 Model Only) |
667 | 1 – 883 Urethane, 1 – 875 Urethane |
|
| 468 | 4″ | Used with 573 Arbor Or 508 Arbor with 499 Tip Or 497 Arbor (1685 Model Only) |
668 | 1 – 874 Urethane, 1 – 878 Urethane |
