Description

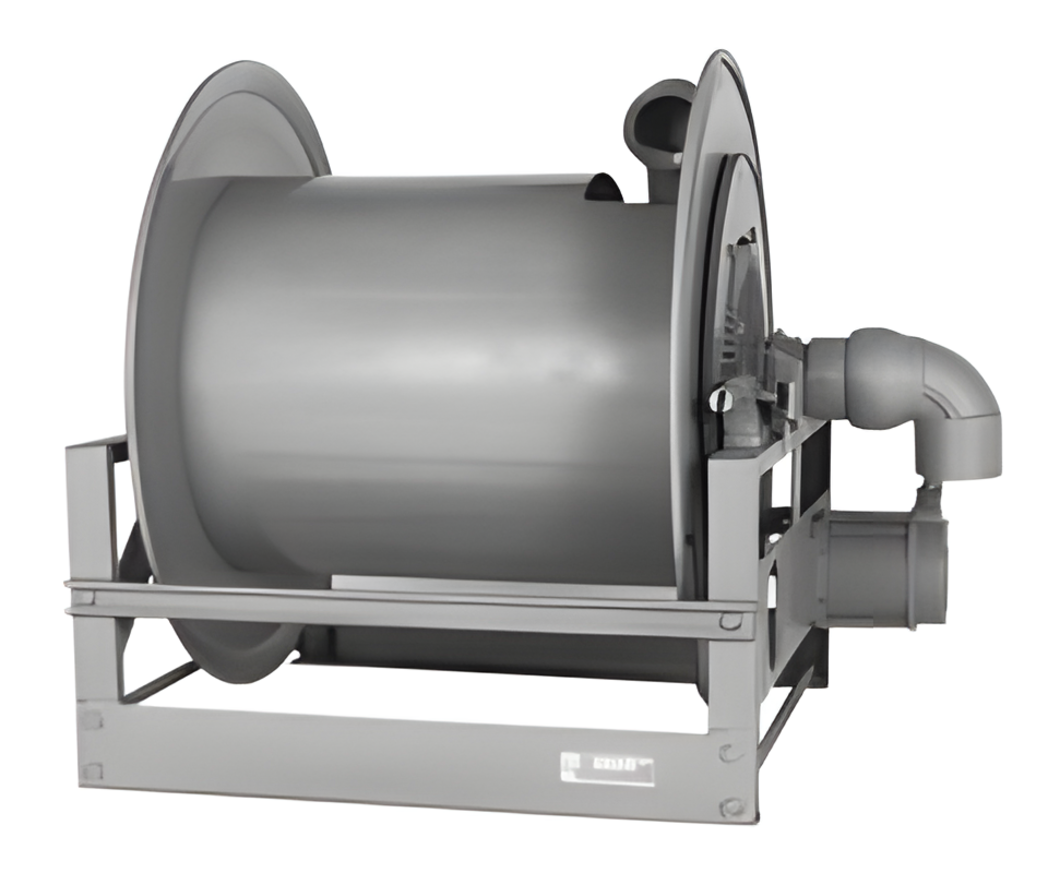

Hannay Reels – V-EPJ-430-52-54-36-12V – 12V Electric Rewind Aviation Hose Reel for Jet Fuel, Avgas
- Rugged, industrial-duty channel frame construction.
- Gear-driven crank rewind, or chain and sprocket drive powered by an electric, hydraulic, or compressed air motor.
- Pinion shaft brake as auxiliary on power reels, at extra cost.
- Crank rewind reels supplied with pinion brake, power reels with comet brake. Other brakes and locking devices may be specified.
- 90° ball bearing swivel joint with 4 in. female NPT threads.
- Flanged riser with 4 in. female NPT threads.
- Consult factory for other sizes and/or threads.
- Standard outlet riser and hub assembly are steel with iron inlet swivel joint. For jet fuels, can be supplied in stainless steel, at extra cost.
- Rollers and roller mounting brackets are accessory items. Specify roller position.
- Pressures to 150 psi (10 bar).
- Temperatures from -20° F to +225° F (-29° C to +107° C).
- Consult factory for other pressures and temperatures.
When ordering power rewind models, prefix model number with: V-A = Air Rewind (supplied with control valve and 25″ air hose); V-EPJ = Explosion Proof Electric Rewind (1/2 HP) (supplied with explosion proof switch, solenoid, and junction box); V-HD = Hydraulic Rewind (not supplied with control valve).
IMPORTANT: Hose Reel Component Locations
All Hannay Hose Reels ship with standard component locations (components meaning inlet, outlet riser and rewind mechanism). Other options available upon request. Please note in checkout comments or email/call us to confirm alternative component locations. To see component location options Click Here.
