Description

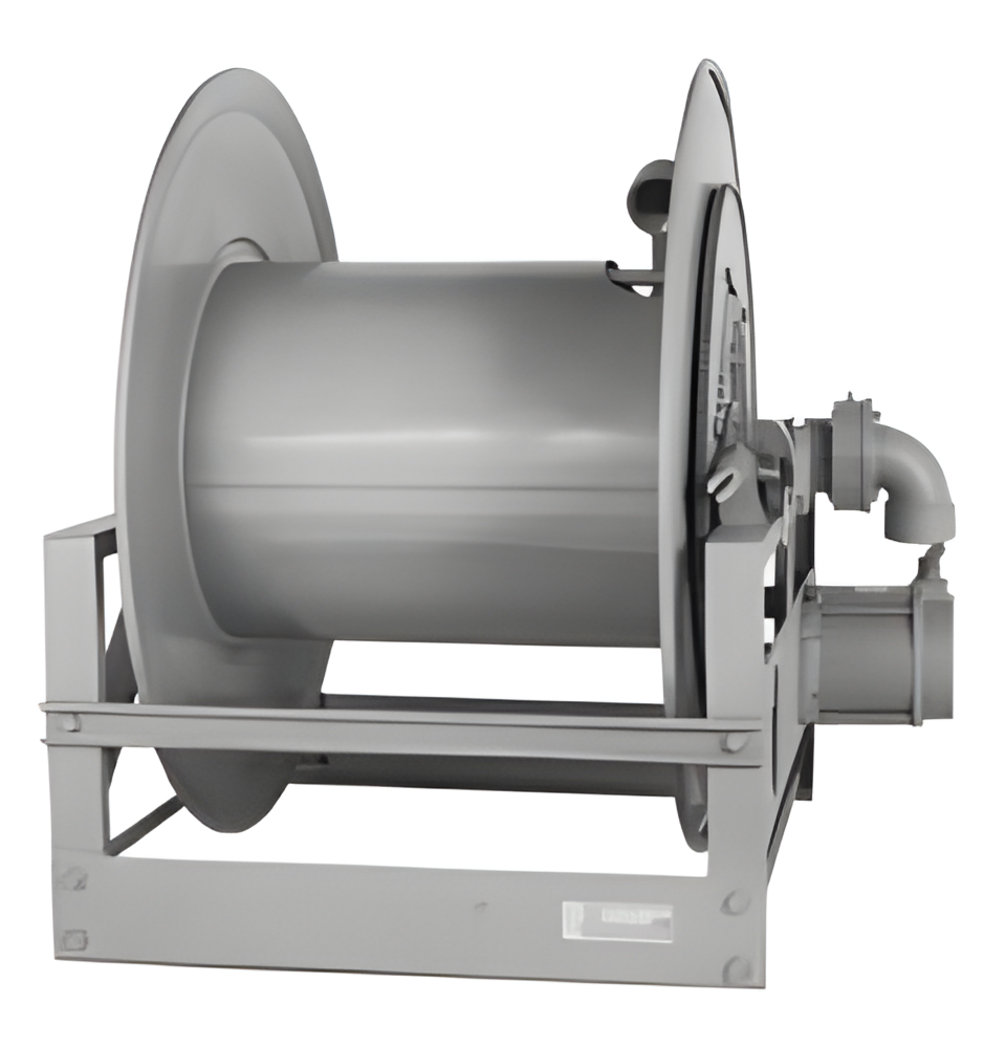

Hannay Reels – V-EP-246-26-27-12V – 12V Electric Rewind Aviation Hose Reel for Jet Fuel, Avgas
- Gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic, or compressed air motor.
- Optional auxiliary crank rewind for power rewind reels.
- Choose EP or EPJ option.
- Comet brake on power rewind without auxiliary crank.
- 90° ball bearing swivel joint with 2 in. victaulic.
- Flanged riser with 2 in. female NPT threads.
- Other sizes and/or threads can be furnished and must be specified.
- Inlet, riser, and hub assembly are steel.
- Stainless steel or aluminum at extra cost.
- Rollers may be purchased; specify roller position.
- Mounting brackets are necessary.
- Pressures to 600 psi (41 bar).
- Temperatures from -60° F to +175° F (-51° C to +79° C).
- Consult factory for other pressures and temperatures.
When ordering power rewind models, prefix model number with: V-A = Air Rewind (supplied with control valve and 18″ air hose). V-EPJ = Explosion Proof Electric Rewind (1/2 HP) (supplied with explosion proof switch, solenoid, and junction box). V-HD = Hydraulic Rewind (not supplied with control valve).
IMPORTANT: Hose Reel Component Locations
All Hannay Hose Reels ship with standard component locations (components meaning inlet, outlet riser and rewind mechanism). Other options available upon request. Please note in checkout comments or email/call us to confirm alternative component locations. To see component location options Click Here.
