Description

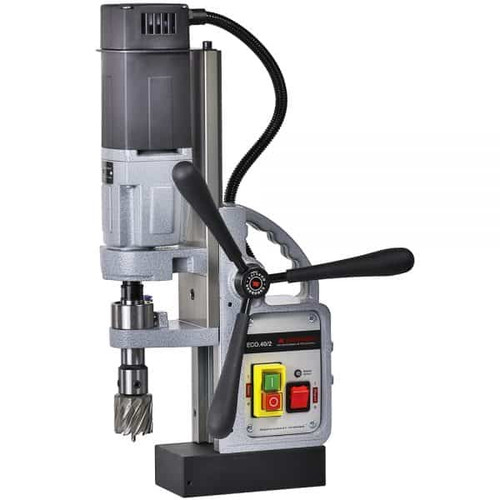

Our compact Euroboor ECO.40/2 is the perfect magnetic core drilling machine for annular cutters up to ø 1 9/16″ (40 mm) and twist drills up to ø 1/2″ (13 mm). This magnetic core drilling machine has a powerful 1050 W (9.5 A) motor, integrated slide and two-speed gearbox. This portable drilling machine also benefits from integrated tool cooling and lubrication to make your drilling process more efficient.
| Annular cutting | Ø 7/16″ – 1 9/16″ |
| Twist drilling | Ø 1/16″ – 1/2″ |
| Countersinking | Ø 3/8″ – 1 3/4″ |
| Length | 12 5/8″ |
| Width | 8 1/4″ |
| Height | 15 9/16″ – 21 1/4″ |
| Stroke | 5 15/16″ |
| Weight | 25.3 lbs* |
| Magnet (l x w x h) | 6 5/16″ x 3 1/8″ x 1 5/8″ |
| Magnetic force | 3305 lbs |
| Motor power | 9.5 A |
| Total power | 10 A |
| Speed (no load) | (I) 720 rpm (II) 1300 rpm |
| Speed (load 9.5 A) | (I) 315 rpm (II) 560 rpm |
| Spindle (Weldon) | 3/4” |
| Voltage | 110 – 120 V / 60 Hz |
