Description

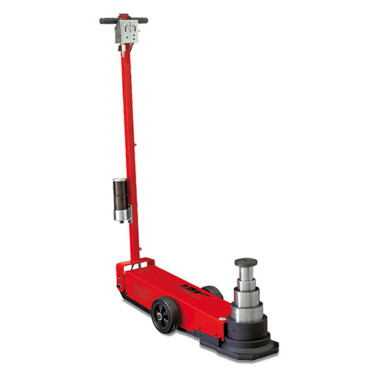

Esco 92010 YAK Jack, Air/Hydraulic, 4 Stage (88/55/28/17 Ton), 418/N
Features
- Air hydraulic jack for heavy vehicles, practical and effective.
- The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load.
- A complete range of jacks for all stroke and capacity requirements.
- Ideal for workshops, tire repairers and bodywork shops
Specifications
| Model Number | 92010 |
| Style | YAK 418/N |
| Capacity | 88-55-28-17 Tons | 80-50-25-15 tonnes |
| Number of Pistons | 4 |
| Stroke | 11.8 in. | 300mm |
| Air Pressure | 116-145 PSI | 8-10 bar |
| Min. Height | 7.17 in. | 182 mm |
| Max. Height | 18.77 in. | 477 mm |
| Handle Length | 51.57 in. | 1310 mm |
| Extensions Included | 0.5 in. | 10 mm – Saddle 4.725 in. | 120 mm – Extension 2.75 in. | 70 mm – Extension Extension Holder Included |
| Weight | 170 lbs. | 77 kg |
| Warranty | 3-Year Warranty* |
| UPC | 816904023881 |
Downloads
Manual
Parts Breakdown
Spec Sheets
