Description

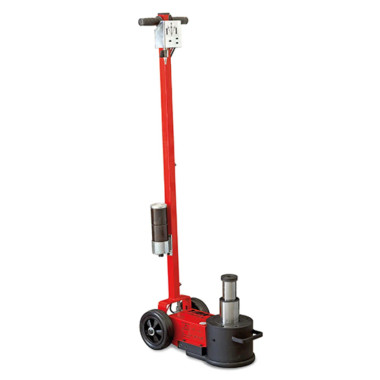

Esco 92004 YAK Jack, Air/Hydraulic, 2 Stage (44/22 Ton), 221/N
Features
- Air hydraulic jack for heavy vehicles, practical and easy to handle.
- The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load.
- Ideal for workshops, mobile workshops, tire repairers and bodywork shops.
Specifications
| Model Number | 92004 |
| Style | YAK 221/N |
| Capacity | 44/22 Tons | 40/20 tonnes |
| Number of Pistons | 2 |
| Stroke | 9.8 in. | 250 mm |
| Air Pressure | 116-145 PSI | 8-10 bar |
| Min. Height | 8.62 in. | 219 mm |
| Max. Height | 18.46 in. | 469 mm |
| Handle Length | 56.61 in. | 1311 mm |
| Extensions Included | 0.5 in. | 10 mm – Saddle 4.725 in. | 120 mm – Extension 2.75 in. | 70 mm – Extension Extension Holder Included |
| Weight | 101 lbs. | 46 kg |
| Warranty | 3-Year Warranty* |
| UPC | 816904023829 |
