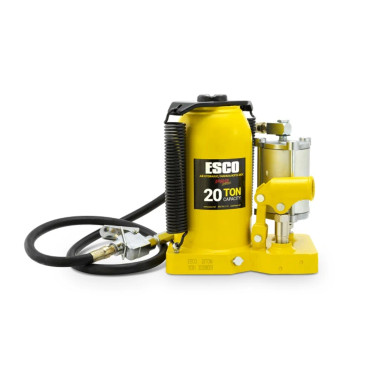

Esco 10381 Bottle Jack, 20 Ton, Air/Hydraulic, Heavy Duty Welded Base
The Esco Pro Series 20 Ton Air Hydraulic Bottle Jack lifting equipment is designed with the heavy-duty tire service market in mind. With lifting capacities from 12 Ton and up to 30 Tons, there is a Jack that will fit any service technician’s needs. Each jack is designed uniquely for specific applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.
Features
- Fully welded cylinder and frame provide superior strength and extended service life.
- Extra thick jack base provides exceptional support and stability in severe conditions.
- The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.
- Chrome-plated piston for extra rust and corrosion resistance.
- Fitted with a safety valve to prevent overloading.
- Double spring design for controlled and safe descent while releasing pressure from the cylinder.
- Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights.
- Design to be operated using air or manually with included two-piece lifting/lowering handle.
- Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger. Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising of the jack to load.
- Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application.
Specifications
| Capacity | 20 Ton (40,000 lbs.) |
| Min. Height | 10 in. |
| Max. Height | 20 in. |
| Ram Travel | 6 in. |
| Screw Adjustment | 4 in. |
| Saddle Width | 1.75 in. |
| Base Thickness | 1.25 in. |
| Base Size L x W | 8.875 x 5.75 in. |
| Inner Package | 10.5 x 8.125 x 11.5 in. |
| Outer Package | 10 x 8 x 11 in. |
| Net Weight | 41 lbs. |
| Gross Weight | 42 lbs. |
| Air Inlet Fitting | 1/4 in. NPT |
| Air Pressure | 110-125 psi |
| UPC | 816904024871 |
