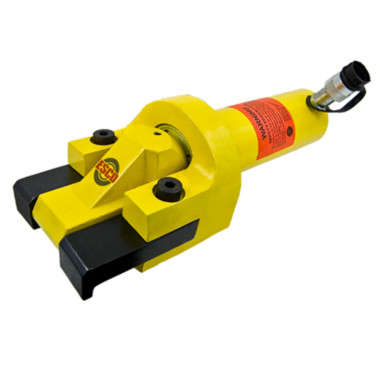

Esco 10103 Giant Tire Bead Breaker – For 39″ Rims & Larger
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.
Features
- Use on 5 piece rims 39”, 45”, 51”, 57”, and 63” wheel sizes.
- In some cases you must first use Model 10105 or the Model 10100 bead breaker to start the movement of the rim flange; the Model 10103 can then be used.
- Model 10504, air/hydraulic pump is recommended for operation.
- The Model 10627 Kit converts the Model 10103 into a Model 10103L, which is capable of Working on 63” Rims.
For use:
| 5 Piece Rim |
Specifications
| Ram Tonnage | 25 Tons |
| Stroke | 6 in. – 152mm |
| Max Pressure | 10,000 PSI |
| Length | 16.5 in. – 419mm |
| Width | 6.5 in. – 165mm |
| Weight | 54 lbs. – 25 kg |
| UPC | 816904021245 |
Available Kits *Sold Separately
- ESC-10211
- ESC-10227
- ESC-10234
- ESC-10827
- ESC-10842
