Product Drop Elbows

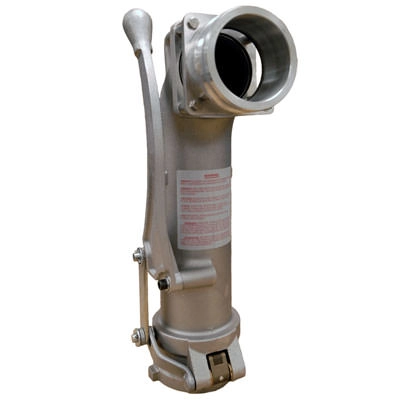

This durable 22″ tall product elbow was designed for those deep tank burial application s and has a high flow rate as a result of the unrestricted flow pattern. It fits all 4-inch top seal adapters and can also be or dered with a variety of different adapters to meet any requirement. The single four bolt flange design allows for easy replacement of adapters over competitive threaded styles and is designed for extremely easy on- and off-coupling as a result of aluminumbronze alloy docking.
- Lightweight cast aluminum.
- Four bolt flange pattern fits all 4″ seal adapters.
- Protective base shield.
- Unique cam locking handle for easy on/off coupling.
- 22″ tall for deep tank burial applications.
| Model Unit | 880-493-01 | 880-493-02 | 880-493-03 | 880-493-04 | 880-493-05 |
|---|---|---|---|---|---|
| Weight (Pounds/Kilograms) | 12.3/5.58 | 13/5.9 | 14.5/6.59 | 14.5-6.59 | 14.5/6.59 |
| Size (Inches/Millimeters) | ? | 4.00/101.6 | 3.00/76.2 | 4.00/101.6 | 3.00/76.2 |
Sight Glass Replacement Parts List:
| Part Number | Part Name |
|---|---|
| 880-459-01 | Product Elbow Body |
| 880-237-01 | Product Elbow Handle |
| 11308-01 | Product Elbow Seal |
| 11086-05 | Pin Spirol |
| 880-310-01 | Locking “Right” Cam |
| 880-238-01 | Handle Block |
| 880-310-02 | Locking “Left” Cam |
| 880-140-01 | Sight Tube Seal |
| 880-162-01 | Sight Tube |
| 880-284-01 | 4″ Cam & Groove Adapter |
| 880-151-01 | Sight Tube Spacer |
| 880-396-01 | 3″ Cam & Groove Adapter |
| 880-247-01 | Adapter Flange Gasket |
| 880-397-01 | 3″ NPT Adapter |
