Description

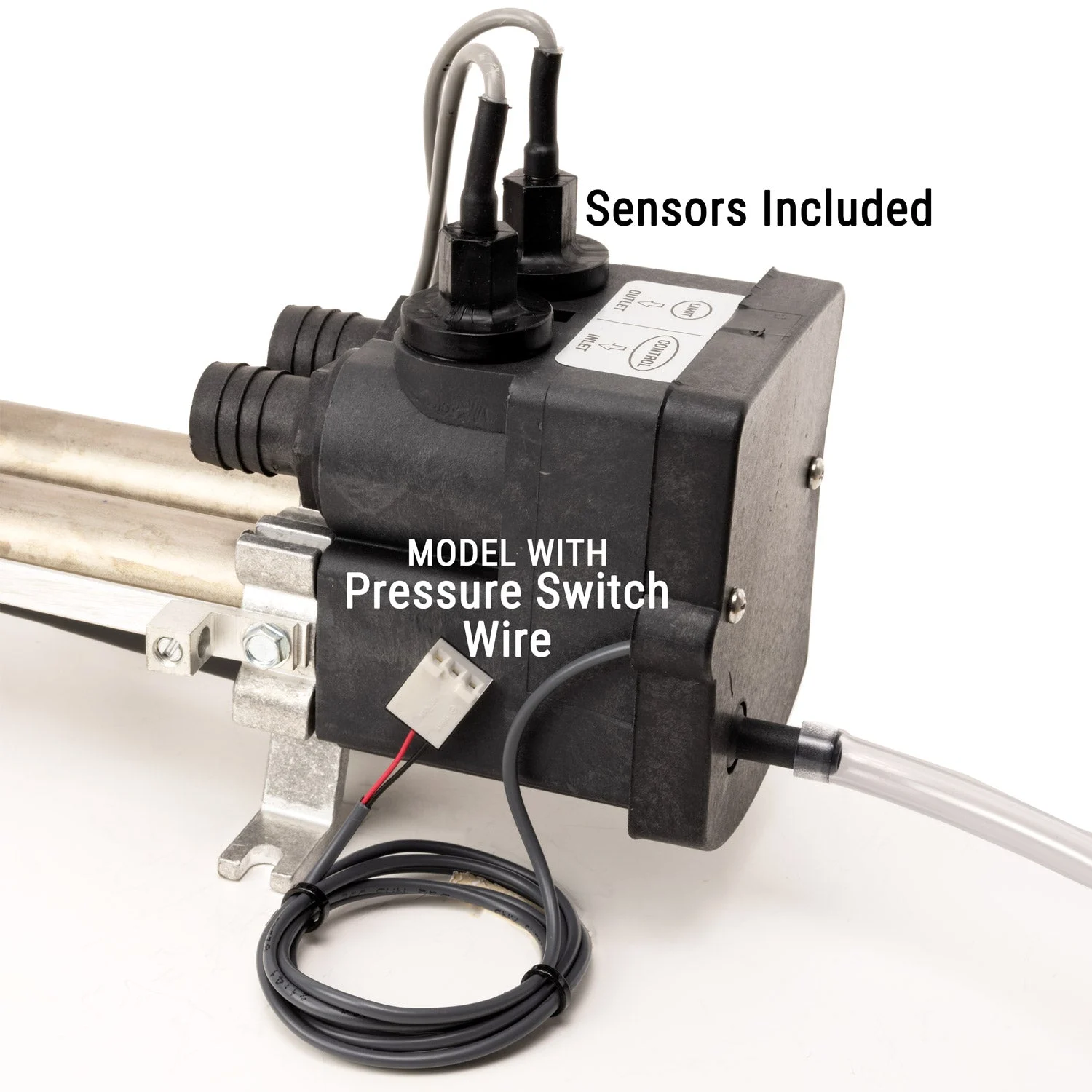

Premium Double-Barrel Lo-Flow Heater Assembly by HydroQuip with Titanium element & installed sensors. Replacement for Watkins No-Fault® heater for Hot Spring®,Tiger River®, Limelight spas. PDR auto reset. Included Bleed Tube Extension Kit for installation ease. You cannot buy a better quality spa heater at any price.
- Titanium extended service heater element – 240V/120V
- Temperature & Hi-Limit Sensors included – Molex plugs
- Internal Pressure Switch (third grey wire) included
- Included: Molex to AMP Plug Cable Adapter Set
Product notes: Molex connectors fit model year 2002 and newer. Included cable Adapter Set converts both Molex connectors to larger AMP style for pre-2002 models (IQ2000) as illustrated. Replaces No-Fault heaters with on-board pressure switch (a third grey wire). Also replaces trumpet-style Laing Infinity 7211.
Watkins Hot Spring No-Fault Heater Replacement Instructions
Details
Length: 19⅝”
Connection: ¾” Barbed Fittings
Voltage: 240V/120V
Wattage: (Titanium) 4kW @ 240V – 1kW @ 120V
High Limit: ½” Threaded Port with installed sensor
Temp Sensor: ⅝” Threaded Port with installed sensor
Power Cord: Heavy-Duty w/Terminal Connectors
Replaces Part Numbers: 73790, 73791, 76227, 76228, 700332, 10311, 2-00-7031, 46-555-1012, 46-555-1013, IHH-4000-NCHW-6759, NSCV73790, 26-C3160-15, 26-C3160-2S
Warranty: 1 year Limited Warranty
