Description

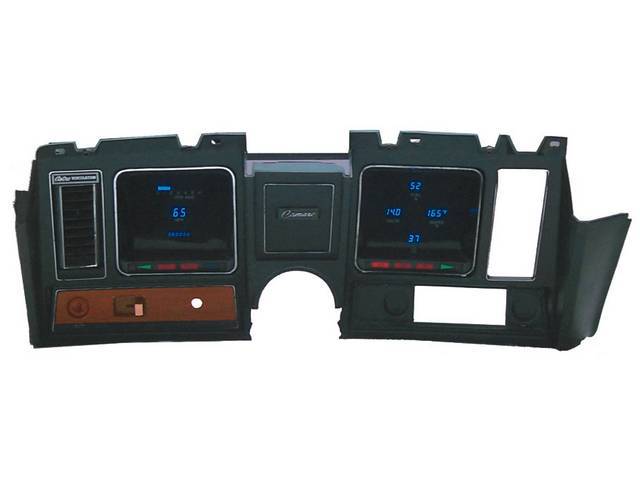

Dakota Digital Instrumentation, Digital, Blue Lighting
Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!.
SPECIFICATIONS:
Note:
Digital Gauges:Speedometer0 -255 MPH Tachometer0- 17,500 RPMOil Pressure0- 99 psiWater Temperature0- 300FFuel Level0- 99%Voltmeter8- 17 VDCStandard ColorsBlue or TealDigital Message Centers:Standard DisplaysOdometer (One time user settable, Million Mile)Dual (A/B) Trip Meter (0- 9,999.9)Performance Meters0- 60 MPH Timer 1/4 mile time1/4 mile end speed (trap speed)High speed recallHigh RPM recallGauges:Speedometer opposite scale of main speedometer.Built-in IndicatorsIndicatorsTurn Signals (Left/ Right)High BeamCheck EngineParking BrakeCruise Control (On/ On & Engaged when vehicle is equipped)Gear Position (Optional NPD part 7E247-1A sensor required) **Not all OEM indicator lamp functions will be replaced.
Chevrolet Camaro Years:
1969 (69)
Product Instructions and Additional Info:
C-9743-21A_Installation and Operation Manaul
C-9743-21A_Qiock Start Guide
