Description

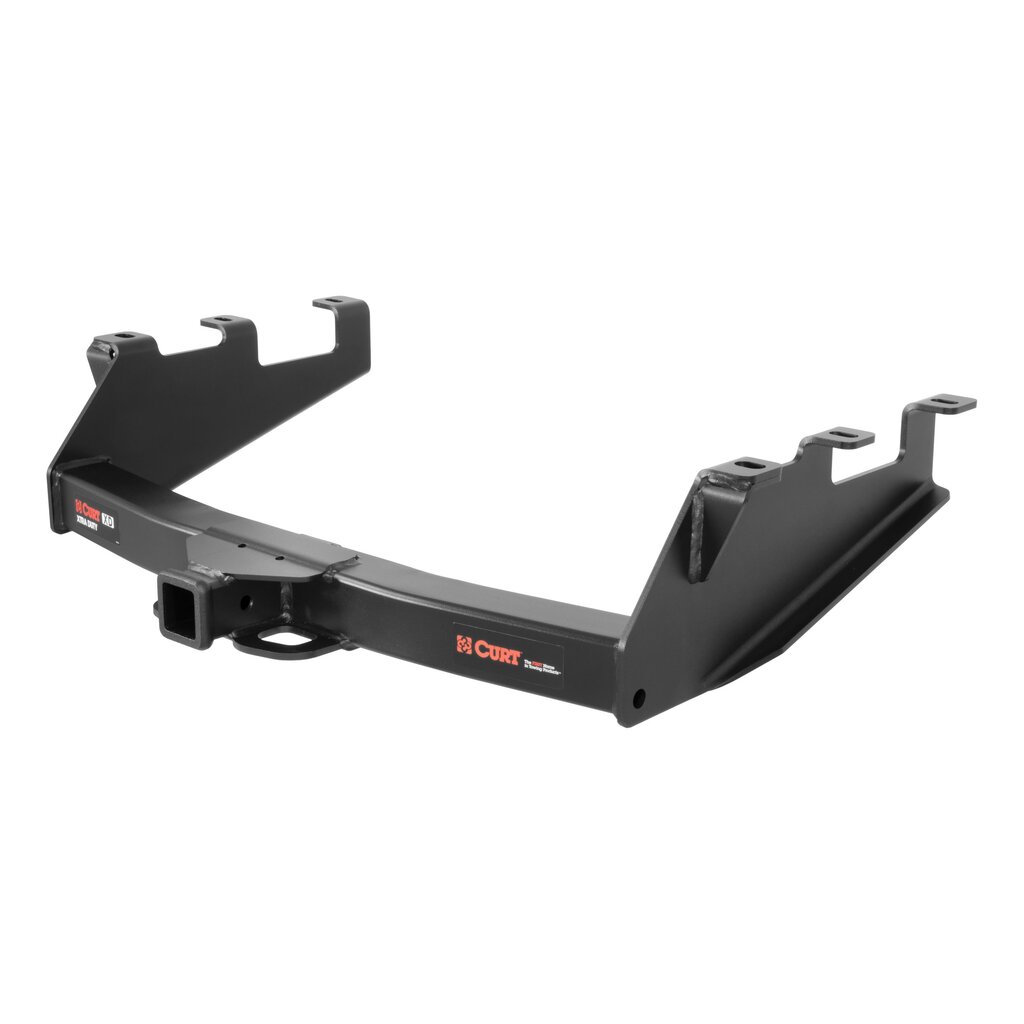

When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs. and an extra-high tongue weight capacity of 2,400 lbs. It features a 2″ x 2″ receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Chevy Silverado 1500, 1500 Classic, 1500 HD, 1500 HD Classic or 2500 and GMC Sierra 1500, 1500 Classic, 1500 HD, 1500 HD Classic or 2500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,400 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.
Guides & Install Sheets
- Installation SheetsDownload
Product Videos
PRODUCT SPECIFICATIONS
Drilling – No
Finish – CARBIDE BLACK POWDER COAT
Installation Difficulty – Novice
Main Body Shape – Square
Material – Carbon Steel
Part Type – Class 5 Xtra Duty
Product Weight -61.000
Receiver Tube Size – 2 IN
Shipping Weight -68.600
Tongue Weight (TW) – 2,400 LB
Warranty – Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity (WC) – 16,000 LB
Weight Distribution (WD) – 17,000 LB
Weight Distribution Tongue Weight (WDTW) – 2,400 LB.
2013ChevroletSilverado 1500All
2013GMCSierra 1500All
2012ChevroletSilverado 1500All
2012GMCSierra 1500All
2011GMCSierra 1500All
2011ChevroletSilverado 1500All
2010ChevroletSilverado 1500All
2010GMCSierra 1500All
2009ChevroletSilverado 1500All
2009GMCSierra 1500All
2008ChevroletSilverado 1500All
2008GMCSierra 1500All
2007ChevroletSilverado 1500 ClassicAll
2007ChevroletSilverado 1500 HD ClassicAll
2007GMCSierra 1500 ClassicAll
2007GMCSierra 1500All
2007ChevroletSilverado 1500All
2007GMCSierra 1500 HD ClassicAll
2006ChevroletSilverado 1500All
2006ChevroletSilverado 1500 HDAll
2006GMCSierra 1500All
2006GMCSierra 1500 HDAll
2005ChevroletSilverado 1500All
2005ChevroletSilverado 1500 HDAll
2005GMCSierra 1500All
2005GMCSierra 1500 HDAll
2004GMCSierra 2500All
2004ChevroletSilverado 1500All
2004ChevroletSilverado 2500All
2004GMCSierra 1500All
2003ChevroletSilverado 1500All
2003ChevroletSilverado 1500 HDAll
2003GMCSierra 1500All
2003ChevroletSilverado 2500All
2003GMCSierra 2500All
2003GMCSierra 1500 HDAll
2002ChevroletSilverado 1500All
2002ChevroletSilverado 1500 HDAll
2002ChevroletSilverado 2500All
2002GMCSierra 1500All
2002GMCSierra 2500All
2002GMCSierra 1500 HDAll
2001ChevroletSilverado 1500 HDAll
2001ChevroletSilverado 1500All
2001ChevroletSilverado 2500All
2001GMCSierra 2500All
2001GMCSierra 1500All
2001GMCSierra 1500 HDAll
2000ChevroletSilverado 1500All
2000ChevroletSilverado 2500All
2000GMCSierra 2500All
2000GMCSierra 1500All
1999ChevroletSilverado 1500All
1999GMCSierra 1500All
1999ChevroletSilverado 2500All
1999GMCSierra 2500All
