Description
Hauling heavy-duty equipment to that next big job? Towing your yacht out to the lake for another weekend on the water? Bringing some livestock home to the farm from the county auction? Whatever towing hurdle you need to overcome, make it look easy with CURT.

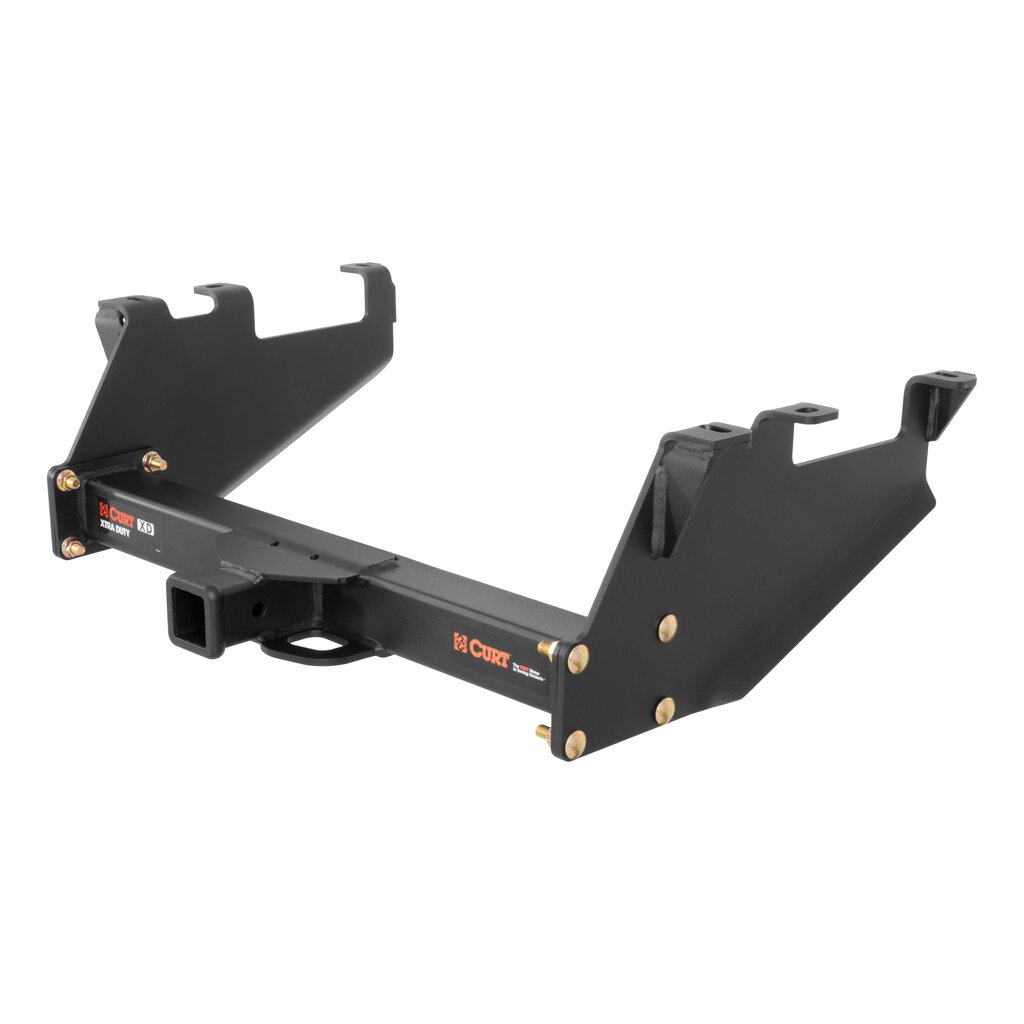

CURT Xtra Duty class 5 trailer hitches go above and beyond in design, capacity and longevity to provide you with a dependable extension of your truck. These heavy-duty hitches are engineered to withstand the rigors of towing the largest of non-commercial trailers, matching the strength and dependability of full-size pickup trucks, vans and SUVs.
Each class 5 hitch is made for a vehicle-specific fit to ensure seamless integration and maximum towing power. This particular custom class 5 hitch is designed to mount onto certain years of the Chevy C1500, C2500, C3500, C3500HD, K1500, K2500 or K3500 and GMC C1500, C2500, C3500, K1500, K2500 or K3500 (check the application information to verify that this hitch will fit your specific year, make, model and style). A vehicle-specific design also provides the easiest possible installation, reducing or completely eliminating drilling and modifications. This hitch comes with high-strength grade-8 hardware for a solid mount.
This class 5 Chevy / GMC hitch is built with an extra-large main body. The hitch is constructed from high-strength steel, and the center section is made extra-large to achieve the necessary towing capacity for tough jobs. This particular hitch is tested and rated for 16,000 pounds gross trailer weight and 2,400 pounds tongue weight. It can also be used with a weight distribution hitch and is rated to 17,000 lbs. WD and 2,400 lbs. WDTW. This makes it the ideal choice for all varieties of heavy-duty trailers — from full-size utility trailers and equipment haulers to horse trailers and yacht trailers (never exceed the lowest-rated towing component).
All CURT Xtra Duty class 5 hitches come with an industry-standard 2″ x 2″ receiver tube opening. This provides a versatile mount for a variety of heavy-duty ball mounts, pintle hitches, weight distribution hitches and other towing accessories. It can also readily accept a cargo carrier or bike rack for extra storage space. The 2″ hitch receiver is equipped with a steel collar for added strength, and the back of the receiver is open to allow for easy clean-out of dirt and debris. To keep the receiver hitch clean, a hitch tube cover can be installed when not use, helping to protect it against grime and corrosion.
To give you confidence for the road ahead and ensure the safety of you and your loved ones, every CURT custom tow hitch design is thoroughly tested according to SAE J684. We test our hitches at our in-house testing facility in Detroit, MI, using real vehicles and multifaceted testing to simulate real towing conditions. All of our class 5 hitches are constructed with large safety chain loops to accept heavy-duty hooks and safety chains.
Like all CURT custom tow hitches, our Xtra Duty class 5 hitches are made right here in the USA (may include imported hardware). We engineer each one using real vehicles to ensure a truly custom fit for each application. We fabricate and weld every trailer hitch using a combination of robotic and manual processes for absolute accuracy and efficiency.
Finally, all of our custom trailer hitches undergo an industry-leading finishing process for unparalleled rust, chip and UV protection. First the hitches are chemically and mechanically descaled for a smooth surface. Then, they are immersed in a liquid A-coat that covers the tow hitch inside and out with an initial rust-resistant layer. Next, a highly durable carbide black powder coat finish is applied over the A-coat. At last, the two finishes are cured together, forming a superior shield against scuffs, scratches and the elements.
CURT custom-fit trailer hitches are built for long-lasting dependability. Each one is backed by a limited lifetime warranty.
Product Specifications
- Color: Black
- Drilling Required: No
- Finish: Powder Coated
- Installation Difficulty: Novice
- Main Body Shape: Square
- Material: Carbon Steel
- Product Weight: 67.700
- Receiver Tube Size: 2 IN
- Shipping Weight: 67.700
- Tongue Weight (TW): 2,400 LB
- Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Carrying Capacity (WC): 16,000 LB
- Weight Distribution (WD): 17,000 LB
- Weight Distribution Tongue Weight (WDTW): 2,400 LB
Compatible Vehicles
2000ChevroletC2500With 10 in. step bumper
1999ChevroletC2500With 10 in. step bumper
1998ChevroletC2500With 10 in. step bumper
1997ChevroletC2500With 10 in. step bumper
1996ChevroletC2500With 10 in. step bumper
1995ChevroletC2500With 10 in. step bumper
1994ChevroletC2500With 10 in. step bumper
1993ChevroletC2500With 10 in. step bumper
1992ChevroletC2500With 10 in. step bumper
1991ChevroletC2500With 10 in. step bumper
1990ChevroletC2500With 10 in. step bumper
1989ChevroletC2500With 10 in. step bumper
1988ChevroletC2500With 10 in. step bumper
2000ChevroletC3500With 10 in. step bumper
1999ChevroletC3500With 10 in. step bumper
1998ChevroletC3500With 10 in. step bumper
1997ChevroletC3500With 10 in. step bumper
1996ChevroletC3500With 10 in. step bumper
1995ChevroletC3500With 10 in. step bumper
1994ChevroletC3500With 10 in. step bumper
1993ChevroletC3500With 10 in. step bumper
1992ChevroletC3500With 10 in. step bumper
1991ChevroletC3500With 10 in. step bumper
1990ChevroletC3500With 10 in. step bumper
1989ChevroletC3500With 10 in. step bumper
1988ChevroletC3500With 10 in. step bumper
2000ChevroletK2500With 10 in. step bumper
1999ChevroletK2500With 10 in. step bumper
1998ChevroletK2500With 10 in. step bumper
1997ChevroletK2500With 10 in. step bumper
1996ChevroletK2500With 10 in. step bumper
1995ChevroletK2500With 10 in. step bumper
1994ChevroletK2500With 10 in. step bumper
1993ChevroletK2500With 10 in. step bumper
1992ChevroletK2500With 10 in. step bumper
1991ChevroletK2500With 10 in. step bumper
1990ChevroletK2500With 10 in. step bumper
1989ChevroletK2500With 10 in. step bumper
1988ChevroletK2500With 10 in. step bumper
2000ChevroletK3500With 10 in. step bumper
1999ChevroletK3500With 10 in. step bumper
1998ChevroletK3500With 10 in. step bumper
1997ChevroletK3500With 10 in. step bumper
1996ChevroletK3500With 10 in. step bumper
1995ChevroletK3500With 10 in. step bumper
1994ChevroletK3500With 10 in. step bumper
1993ChevroletK3500With 10 in. step bumper
1992ChevroletK3500With 10 in. step bumper
1991ChevroletK3500With 10 in. step bumper
1990ChevroletK3500With 10 in. step bumper
1989ChevroletK3500With 10 in. step bumper
1988ChevroletK3500With 10 in. step bumper
2000GMCC2500With 10 in. step bumper
1999GMCC2500With 10 in. step bumper
1998GMCC2500With 10 in. step bumper
1997GMCC2500With 10 in. step bumper
1996GMCC2500With 10 in. step bumper
1995GMCC2500With 10 in. step bumper
1994GMCC2500With 10 in. step bumper
1993GMCC2500With 10 in. step bumper
1992GMCC2500With 10 in. step bumper
1991GMCC2500With 10 in. step bumper
1990GMCC2500With 10 in. step bumper
1989GMCC2500With 10 in. step bumper
1988GMCC2500With 10 in. step bumper
2000GMCC3500With 10 in. step bumper
1999GMCC3500With 10 in. step bumper
1998GMCC3500With 10 in. step bumper
1997GMCC3500With 10 in. step bumper
1996GMCC3500With 10 in. step bumper
1995GMCC3500With 10 in. step bumper
1994GMCC3500With 10 in. step bumper
1993GMCC3500With 10 in. step bumper
1992GMCC3500With 10 in. step bumper
1991GMCC3500With 10 in. step bumper
1990GMCC3500With 10 in. step bumper
1989GMCC3500With 10 in. step bumper
1988GMCC3500With 10 in. step bumper
2000GMCK2500With 10 in. step bumper
1999GMCK2500With 10 in. step bumper
1998GMCK2500With 10 in. step bumper
1997GMCK2500With 10 in. step bumper
1996GMCK2500With 10 in. step bumper
1995GMCK2500With 10 in. step bumper
1994GMCK2500With 10 in. step bumper
1993GMCK2500With 10 in. step bumper
1992GMCK2500With 10 in. step bumper
1991GMCK2500With 10 in. step bumper
1990GMCK2500With 10 in. step bumper
1989GMCK2500With 10 in. step bumper
1988GMCK2500With 10 in. step bumper
2000GMCK3500With 10 in. step bumper
1999GMCK3500With 10 in. step bumper
1998GMCK3500With 10 in. step bumper
1997GMCK3500With 10 in. step bumper
1996GMCK3500With 10 in. step bumper
1995GMCK3500With 10 in. step bumper
1994GMCK3500With 10 in. step bumper
1993GMCK3500With 10 in. step bumper
1992GMCK3500With 10 in. step bumper
1991GMCK3500With 10 in. step bumper
1990GMCK3500With 10 in. step bumper
1989GMCK3500With 10 in. step bumper
1988GMCK3500With 10 in. step bumper
