Description

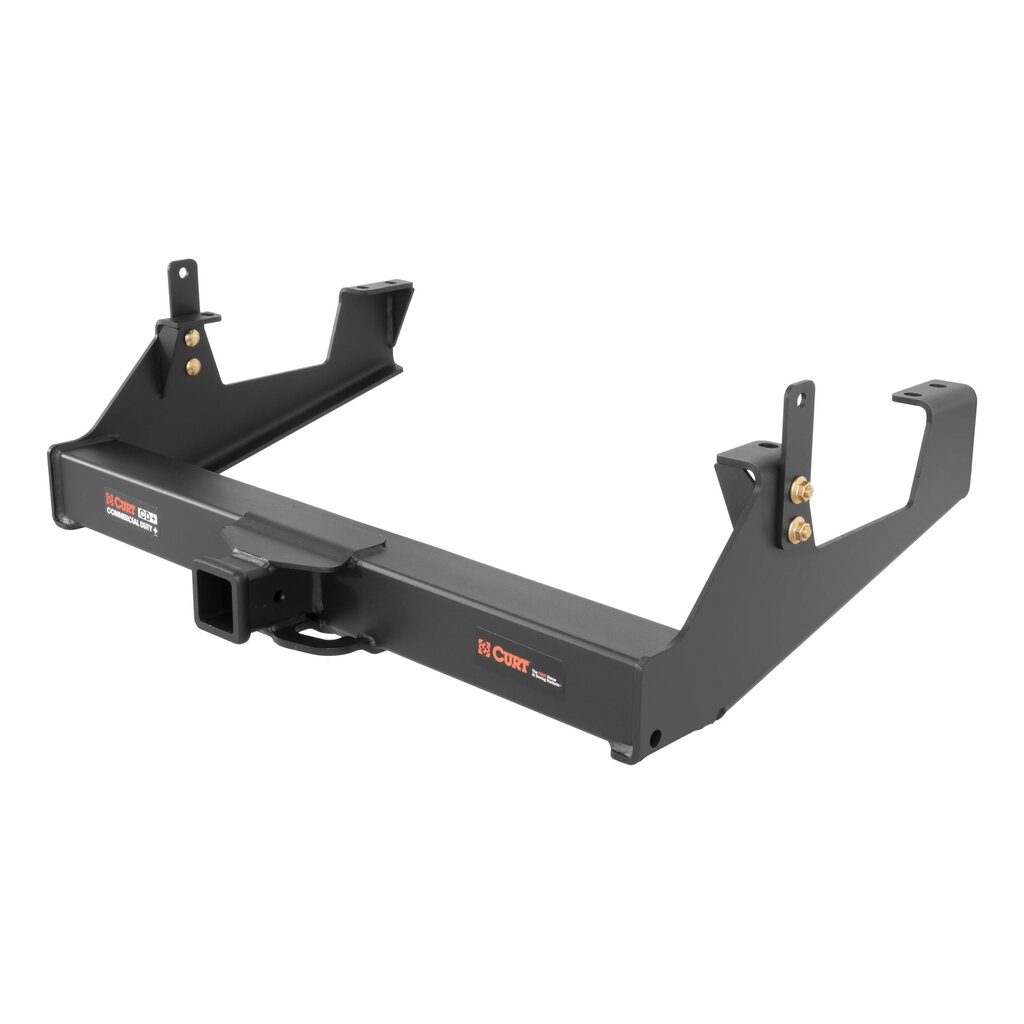

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Chevy Silverado 2500 HD or 3500 HD and GMC Sierra 2500 HD or 3500 HD (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2″ x 2-1/2″ receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.
Guides & Install Sheets
- Installation SheetsDownload
Product Videos
PRODUCT SPECIFICATIONS
Drilling Required – Yes
Finish – CARBIDE BLACK POWDER COAT
Installation Difficulty – Novice
Main Body Shape – Square
Material – Carbon Steel
Part Type – Class 5 Commercial Duty
Product Weight – 84.500
Receiver Tube Size – 2-1/2 IN
Shipping Weight – 93.500
Tongue Weight (TW) – 2,700 LB
Warranty – Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity (WC) – 20,000 LB
Weight Distribution (WD) – 20,000 LB
Weight Distribution Tongue Weight (WDTW) – 2,700 LB
2019ChevroletSilverado 2500 HDExcluding Cab & Chassis
2019ChevroletSilverado 3500 HDExcluding Cab & Chassis
2019GMCSierra 2500 HDExcluding Cab & Chassis
2019GMCSierra 3500 HDExcluding Cab & Chassis
2018ChevroletSilverado 2500 HDExcluding Cab & Chassis
2018ChevroletSilverado 3500 HDExcluding Cab & Chassis
2018GMCSierra 2500 HDExcluding Cab & Chassis
2018GMCSierra 3500 HDExcluding Cab & Chassis
2017ChevroletSilverado 2500 HDExcluding Cab & Chassis
2017ChevroletSilverado 3500 HDExcluding Cab & Chassis
2017GMCSierra 2500 HDExcluding Cab & Chassis
2017GMCSierra 3500 HDExcluding Cab & Chassis
2016ChevroletSilverado 2500 HDExcluding Cab & Chassis
2016ChevroletSilverado 3500 HDExcluding Cab & Chassis
2016GMCSierra 2500 HDExcluding Cab & Chassis
2016GMCSierra 3500 HDExcluding Cab & Chassis
2015ChevroletSilverado 2500 HDExcluding Cab & Chassis
2015ChevroletSilverado 3500 HDExcluding Cab & Chassis
2015GMCSierra 2500 HDExcluding Cab & Chassis
2015GMCSierra 3500 HDExcluding Cab & Chassis
2014ChevroletSilverado 2500 HDExcluding Cab & Chassis
2014ChevroletSilverado 3500 HDExcluding Cab & Chassis
2014GMCSierra 2500 HDExcluding Cab & Chassis
2014GMCSierra 3500 HDExcluding Cab & Chassis
2013ChevroletSilverado 2500 HDExcluding Cab & Chassis
2013ChevroletSilverado 3500 HDExcluding Cab & Chassis
2013GMCSierra 2500 HDExcluding Cab & Chassis
2013GMCSierra 3500 HDExcluding Cab & Chassis
2012ChevroletSilverado 2500 HDExcluding Cab & Chassis
2012ChevroletSilverado 3500 HDExcluding Cab & Chassis
2012GMCSierra 2500 HDExcluding Cab & Chassis
2012GMCSierra 3500 HDExcluding Cab & Chassis
2011ChevroletSilverado 2500 HDExcluding Cab & Chassis
2011ChevroletSilverado 3500 HDExcluding Cab & Chassis
2011GMCSierra 2500 HDExcluding Cab & Chassis
2011GMCSierra 3500 HDExcluding Cab & Chassis
