Description

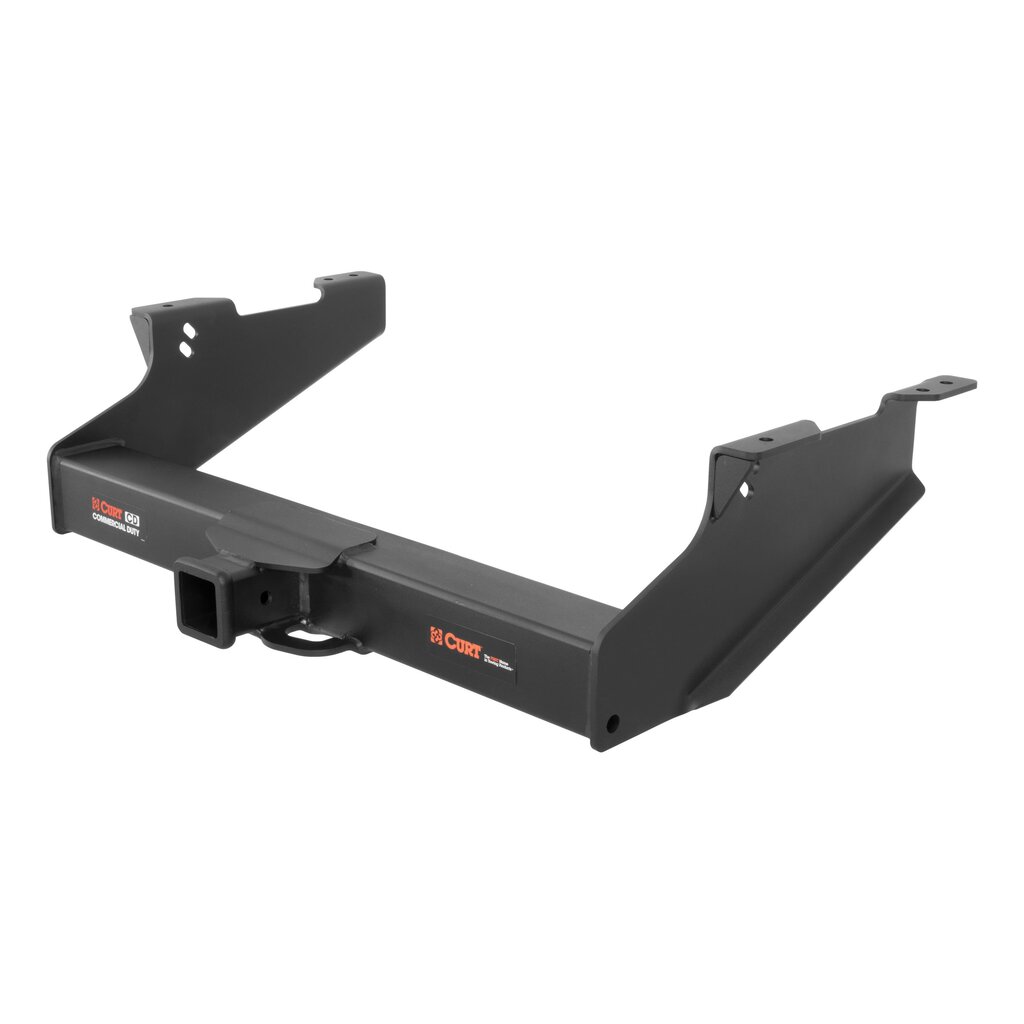

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 18,000 lbs. and a tongue weight capacity of 2,700 lbs. It is
designed to be a custom trailer hitch for certain years of the Dodge Ram 1500, 2500 and 3500 (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2″ x 2-1/2″ receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.
Guides & Install Sheets
- Installation SheetsDownload
Product Videos
PRODUCT SPECIFICATIONS
Drilling Required- No
Finish – CARBIDE BLACK POWDER COAT
Installation Difficulty – Novice
Main Body Shape – Square
Material – Carbon Steel
Part Type- Class 5 Commercial Duty
Product Weight -77.000
Receiver Tube Size -2-1/2 IN
Shipping Weight – 86.000
Tongue Weight (TW) – 2,700 LB
Warranty – Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity (WC) – 18,000 LB
Weight Distribution (WD) – 18,000 LB
Weight Distribution Tongue Weight (WDTW) – 2,700 LB
2015Ram2500Excluding factory receiver
2015Ram3500Excluding factory receiver or cab & chassis
2014Ram2500Excluding factory receiver
2014Ram3500Excluding factory receiver or cab & chassis
2013Ram2500Excluding factory receiver
2013Ram3500Excluding factory receiver or cab & chassis
2012Ram2500Excluding factory receiver
2012Ram3500Excluding factory receiver or cab & chassis
2011Ram3500Excluding factory receiver or cab & chassis
2011Ram2500Excluding factory receiver
2010DodgeRam 2500Excluding factory receiver
2010DodgeRam 3500Excluding factory receiver
2009DodgeRam 2500Excluding factory receiver
2009DodgeRam 3500Excluding factory receiver
2008DodgeRam 1500Excluding factory receiver
2008DodgeRam 3500Excluding factory receiver
2008DodgeRam 2500Excluding factory receiver
2007DodgeRam 2500Excluding factory receiver
2007DodgeRam 1500Excluding factory receiver
2007DodgeRam 3500Excluding factory receiver
2006DodgeRam 2500Excluding factory receiver
2006DodgeRam 3500Excluding factory receiver
2006DodgeRam 1500Excluding factory receiver
2005DodgeRam 2500Excluding factory receiver
2005DodgeRam 1500Excluding factory receiver
2005DodgeRam 3500Excluding factory receiver
2004DodgeRam 2500Excluding factory receiver
2004DodgeRam 1500Excluding factory receiver
2004DodgeRam 3500Excluding factory receiver
2003DodgeRam 2500Excluding factory receiver
2003DodgeRam 1500Excluding factory receiver
2003DodgeRam 3500Excluding factory receiver
