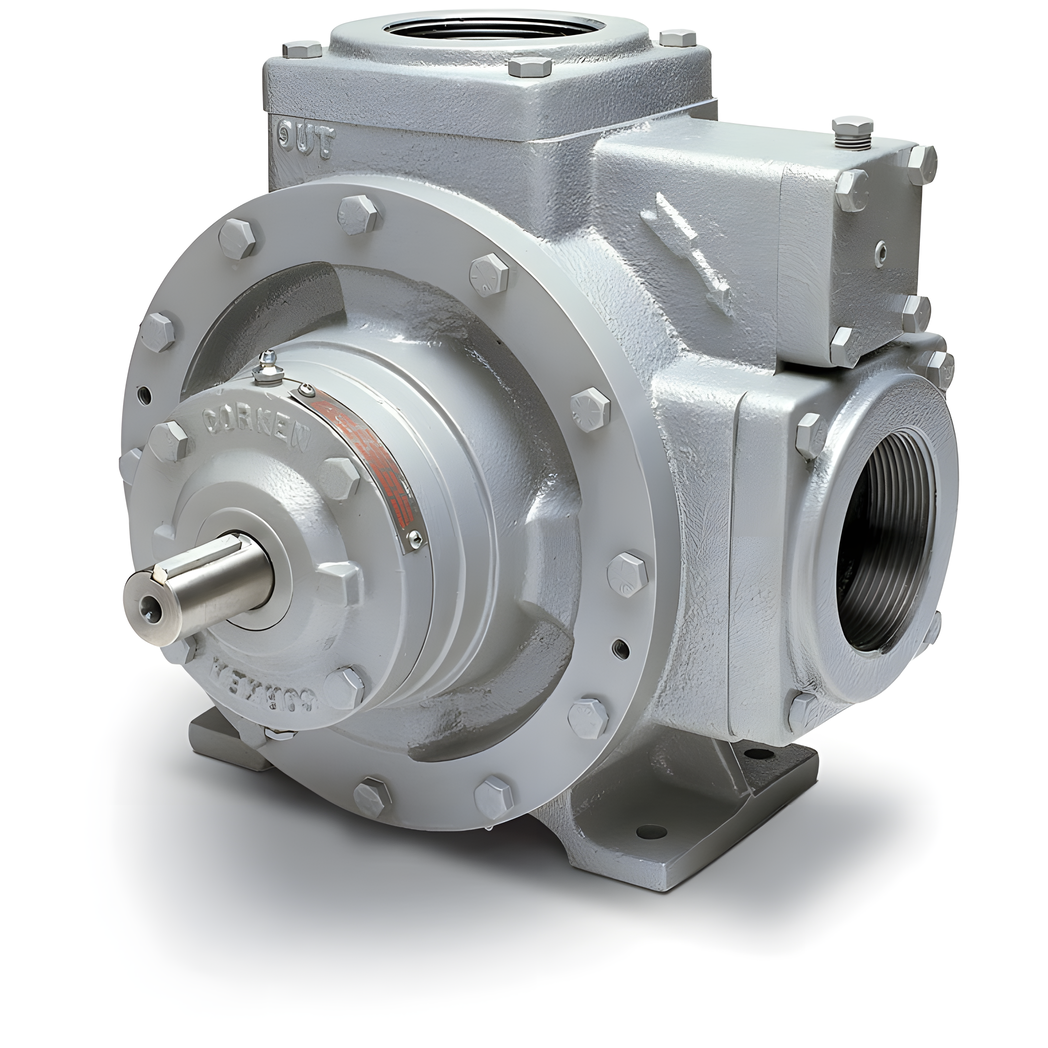

Corken CDBN0522 High-Pressure Sliding Vane Pump
Manuals and Information:
CDBN Brochure
Installation / Operation / Maintenance Manual
CDBN Series Specifications
Outline Dimensions
Performance Curves
Parts Details
CD-model sliding vane industrial pumps are designed for a maximum working pressure of 400 psi (27.6 bar). The sliding vane design has self-adjusting vanes that offers a consistent level of pumping efficiency throughout the life of the pump. They are constructed with a combination of gaskets and O-rings, have an adjustable internal relief valve, and a wide variety of mechanical sealing options. Ideal for petroleum products with low vapor pressures such as petroleum based oils, fuel oils and lube oils, and thin liquids such as alcohols and solvents.
Operating Specifications
- Flow rates up to 100 gpm (1,514 l/min)
- Working pressures up to 400 psi (27.6 bar)
- Differential pressures up to 125 psi (8.6 bar)
- Temperature range: -25 to 225 °F (-32 to 107 °C)
- Viscosities up to 20,000 SSU (4,250 cSt)
