Description

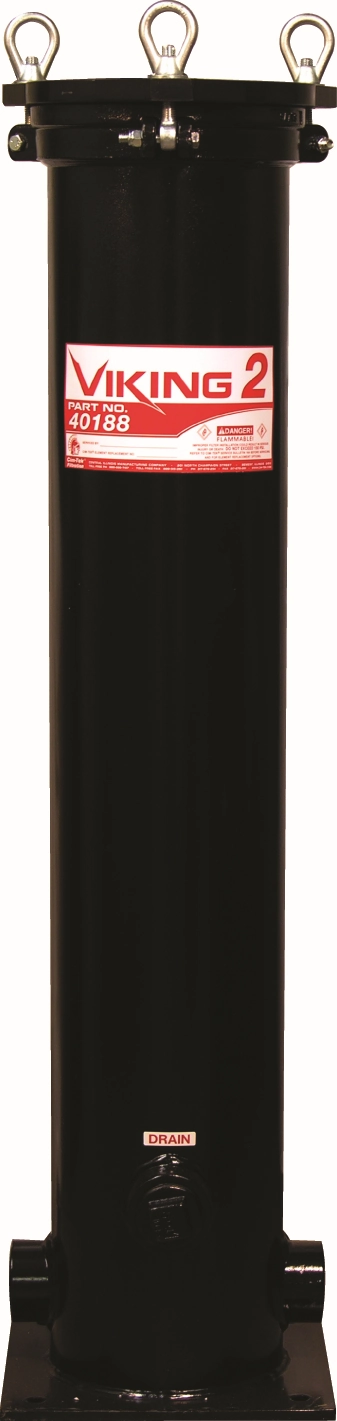

Cim-Tek Viking-2 Filter Housing Assembly
Viking Spec Sheets
Viking-2 Spec Sheet
Viking-2F Spec SheetApplication
- Capable of filtering gasoline, ethanol blends up to E15, biodiesel blends up to B100, diesel fuel, ultra-low sulfer diesel (ULSD), and fuel oils
- Industrial fluids such as lubrication oils, hydraulic oils, synthetic oils, transformer oils, many solvents, and thinners may be filtered
- Bulk fueling racks and bulk fluid transfer
Design
- 150 gpm (567.8 lpm) maximum flow
- 150 psi rating
- Standard 2 in. NPT inlet/outlet flow, flanged available
- Epoxy coated on inside and outside
- 3 bolt swing down lid
- Inlet to outlet dimensions 12 in. (2 in. NPT)
- Inlet to outlet dimensions 13-1/2 in. (flanged model)
- 12 in. x 12 in. bottom plate
- Carbon steel housing
- 1/4 in. ports for the optional pressure gauge kit
- Requires 2, 6 in. x 18 in. elements
Benefits
- Removes common contaminates such as dirt, dust, and rust
- Increased filtering capacity
- Easy opening access with swing down lid
- Full ASME certification available
Not to be used for aviation applications
