Description

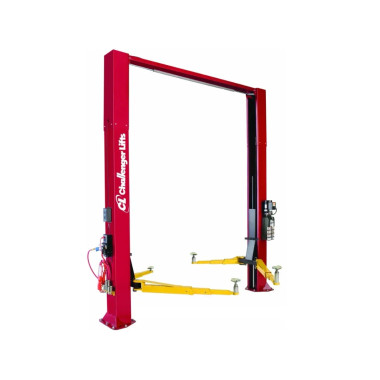

Challenger Lifts CL10AV3-DPC Versymmetric 10000 Lbs 2-Post Car Lift W/ Dual Pendant Controls
*Extra accessories shown in the pictures are sold separately
Challenger’s CL10AV3-DPC model features our exclusive Versymmetric technology to allow you to service the widest range of vehicles and maximize your bottom line. 3-stage front and 3-stage rear arms with our industry-first directSPOT design eliminate the need to shuffle a vehicle back and forth to swing the front arm clear of the tire to reach recommended lift points. Accurate first-try spotting will boost your productivity as well as reduce frustration in your shop.
We also offer the CL10AV3-DPC in several configurations to meet your service application needs. A drive-on pad option provides the quickest vehicle spotting for express bays. In addition, choose between a wide range of accessories to make the CL10AV3-DPC a reliable solution for your shop. Expand your service potential with our most versatile, easy-to-operate lift.
Features
- Dual Pendant Controls.
- 10,000 lb. lift capacity.
- Versymmetric offset front arms provide directSPOT to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential.
- Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on equalization system and increases cable life.
- 48 in. elongated carriage design increases lift life.
- Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available.
- Padded overhead shut off system prevents vehicle damage.
- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters.
- Fully gusseted base plate design increases column rigidity.
- Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life.
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage.
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability.
- Premium powder coat finish provides long-lasting durability.
- *Includes Stack Adaptor Kit (Part No. 10315), Document Caddy (Part No. 10320) And Pendant Holder (Part No. 10321), (143 In. Height At Full Stroke) (Single Phase Only)
Specifications
| Model Number | CL10AV3-DPC |
| Lifting Capacity | 10,000 lbs. |
| Lifting Configuration | Versymmetric (Symmetric & Asymmetric) |
| Arms | 3-stage front/3-stage rear |
| Rise Height | 74.125” |
| Overall Height | 11′ 2″ or 11′ 8″ |
| Overall Height (Cylinder Extended) | 11′ 11″ |
| Overall Width | 11′ 6.5″ / 12′ .5″ / 12′ 6.5″ |
| Drive-Thru Clearance | 100″ / 106″ / 112″ |
| Floor to Overhead Switch | 10′ 8.5″ – 11′ 2.5″ |
| Front Arm Reach | 20” – 42” |
| Rear Arm Reach | 37.625” – 60” |
| Screw Pad Height | 3.875” – 6.125” |
| Inside Columns | 110″ / 116″ / 122″ |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 38 s |
| Ceiling Height Required | 12′ |
| ALI/ETL Certified | Yes |
| Quick Cycle | – |
| Dual Pendant Controls | Yes |
| Colors Available | Red, Blue, Black |
Additional Parts and Accessories (Sold Separately)
| Productivity Accessories | |
| Part No. | Description |
| B10264A | Air/electric workstation with filter/lubricator/regulator |
| B99700 | Tire Tool Manager Work Station with filter/lubricator/regulator |
| Footpad Accessories | |
| Part No. | Description |
| B2280PR | NEW wide frame footpad |
| 10313 | Pair of 6 in. stack adapter extensions |
| 10315 | Stack adapter kit – includes (4) 3 in. Stack Extensions, (2) 6 in. Stack Extensions & (2) Organizer Racks with hardware |
| 10316 | Organizer rack for stack adapter extensions |
| B2260 | Round rubber-style double screw foot pad assembly. For use on 10k 2-post lifts only, 2,500 lb capacity per footpad. |
