Description

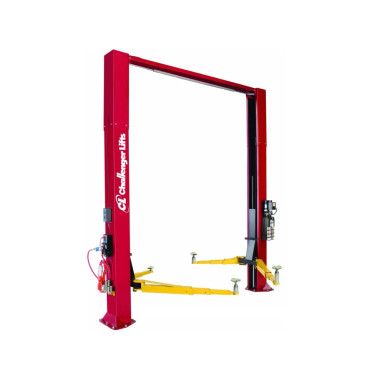

Challenger Lifts CL10AV3-3-QC Versymmetric 10,000 Lbs Two Post Lift W/ 3 ft Extensions And Quick Cycle
*Extra accessories shown in the pictures are sold separately
The 2 Post Lift: 10,000 Lbs is a durable and reliable solution for lifting vehicles safely and efficiently. Designed with a 10,000-pound capacity, it’s perfect for professional garages, workshops, and car enthusiasts. This 10,000 2 Post Lift features sturdy construction, advanced safety mechanisms, and easy operation, making it ideal for maintenance, repairs, and inspections. Upgrade your workspace with this essential equipment, ensuring stability and high performance for a wide range of vehicles.
Features
- 3 feet height extensions.
- Quick Cycle.
- 10000 pound 2 post car lift.
- Versymmetric offset front arms provide directSPOT to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential.
- Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on equalization system and increases cable life.
- 48 in. elongated carriage design increases lift life.
- Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available.
- Padded overhead shut off system prevents vehicle damage.
- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters.
- Fully gusseted base plate design increases column rigidity.
- Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life.
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage.
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability.
- Premium powder coat finish provides long-lasting durability.
Specifications
| Model Number | CL10AV3-3-QC |
| Lifting Capacity | 10,000 lbs. |
| Lifting Configuration | Versymmetric (Symmetric & Asymmetric) |
| Arms | 3-stage front/3-stage rear |
| Rise Height | 74.125” |
| Overall Height | 11′ 2″ or 11′ 8″ |
| Overall Height (Cylinder Extended) | 11′ 11″ |
| 3’ Height Extension Available | Yes |
| Overall Width | 11′ 6.5″ / 12′ .5″ / 12′ 6.5″ |
| Drive-Thru Clearance | 100″ / 106″ / 112″ |
| Floor to Overhead Switch | 10′ 8.5″ – 11′ 2.5″ |
| Front Arm Reach | 20” – 42” |
| Rear Arm Reach | 37.625” – 60” |
| Screw Pad Height | 3.875” – 6.125” |
| Inside Columns | 110″ / 116″ / 122″ |
| Motor / Voltage | 3HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 27 s |
| Ceiling Height Required | 12′ |
| ALI/ETL Certified | Yes |
| Quick Cycle | Yes |
| Dual Pendant Controls | – |
| Colors Available | Red, Blue, Black |
Additional Parts and Accessories (Sold Separately)
| Productivity Accessories | |
| Part No. | Description |
| B10264A | Air/electric workstation with filter/lubricator/regulator |
| B99700 | Tire Tool Manager Work Station with filter/lubricator/regulator |
| Footpad Accessories | |
| Part No. | Description |
| B2280PR | NEW wide frame footpad |
| 10313 | Pair of 6 in. stack adapter extensions |
| 10315 | Stack adapter kit – includes (4) 3 in. Stack Extensions, (2) 6 in. Stack Extensions & (2) Organizer Racks with hardware |
| 10316 | Organizer rack for stack adapter extensions |
| B2260 | Round rubber-style double screw foot pad assembly. For use on 10k 2-post lifts only, 2,500 lb capacity per footpad. |
Downloads
CL10V3 Manual
CL10V3 Manual
CL10V3 Spec Sheet
