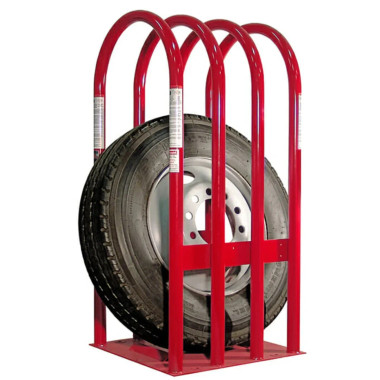

Branick 2240 NM 4 Bar Inflation Cage
Branick’s 2240 Tire Safety Cage stands 60″ tall and comes with four bars. It can handle tires with a maximum width of 21.5″ (cross section) and maximum diameter of 54″. If you work on commercial truck tires and super singles, you’ll need the added height of the 2200 series. Combine the No-Mar cage with our BlockHead Auto Inflator, both of which can handle run-flat and high pressure tires, to create a more efficient and safer environment for your workers.
Features
- High Yield Strength Steel Construction.
- Meets OSHA Standard CFR 1910.177
- Arch Design for Maximum Energy Displacement.
- Included Rim saving “No-Mar” poly side strips.
- Made in the USA.
Specifications
| Bars | 4 |
| Max Tire Width | 21.5″ |
| Max Tire Diameter | 54″ |
| Max Inflation Pressure | 120 psi |
| Shipping Weight | 170 lb |
| Dimensions (Inches) | 28 W X 28 D X 60 H |
Downloads
Brochure
