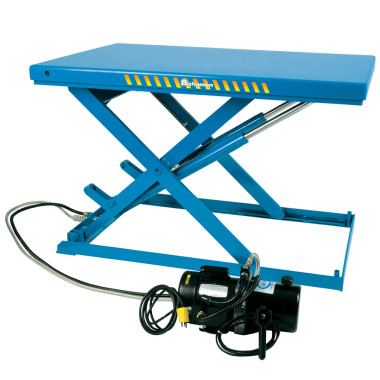

Bishamon LX-200N LX Series Scissor Lift Table

Bishamon LX-200N LX Series Scissor Lift Table

Original price was: $8,202.00.Current price is: $820.20.

SKU: BN-LX-200N Category: Tag:

Description

Bishamon LX-200N LX Series Scissor Lift Table

Bishamon’s Lo Profile lifts are electro-hydraulic lift tables that offer heavy-duty lifting power and convenient low profile hydraulic lift functionality. These low profile lift tables can handle capacities up to 4,400 lbs. and feature a variety of platform sizes and lift heights.

Features

  • Extremely low collapsed heights of 2.9” to 4.3” provides access for rolling products, carts or pallet trucks.
  • Electric full-perimeter toe guard around the platform provides optimum operator safety.
  • Heavy-duty construction with captured scissor rollers for maximum stability.
  • Remote power unit with hand held control.
  • 24V operator control voltage.
  • High performance external electric-hydraulic power unit.
  • Durable steel braided hydraulic hose.

*Note: LX-25S, LX-25L, LX-50S, and LX-50L comes with a hand control standard.

Toe guard             Full perimeter Electric Toe guard

Power Unit     Remote Power Unit

Specifications

 Model LX-200N
 Capacity  4,400 lbs.
 Platform Size W (A) x L (B) 33.5 x 55.5 in.
 Platform Height Lowered (C) 4.3 in.
 Platform Height Raised (D)  39.4 in.
 Power Units E / 1 / 3 / 3-480*
 Approx. Time Up  34 sec.
 Approx. Time Down 26 sec.
 Approx. Ship Weight  860 lbs.


*E = 1 HP / 115V (115V motors increase up time up to 50%)
*1 = 1 HP / 230V / 1 PHASE
*3 = 1 HP / 230V / 3 PHASE
*3-480 = 1 HP / 480V / 3 PHASE

Additional parts and Accessories (Sold Separately)

Approach Ramp             Bishamon Approach ramp for carts (approx. 23 in. length)

Pallet Truck
Approach Ramp		     Bishamon Approach ramp for pallet truck access (approx. 50 in. length)

Power Unit
Option 1 PH		     230 VAC, 1 Phase motor with 24V controls: no change in up time

Power Unit
Option 3 PH		     230 VAC, 3 Phase motor with 24V controls: decreases up time to 14 seconds

Other Models Available

 Model LX-100W  LX-100N  LX-200WM LX-200WL
 Capacity 2,200 lbs.  2,200 lbs.  4,400 lbs.  4,400 lbs.
 Platform Size W (A) x L (B) 34.5 x 51.0 in.  24 x 51.0 in.  45.5 x 61.5 in.  45.5 x 81.0 in.
 Platform Height Lowered (C) 3.3 in.  3.3 in.  4.3 in.  4.3 in.
 Platform Height Raised (D) 38.6 in.  38.6 in.  39.4 in.  39.4 in.
 Power Units E / 1 / 3 / 3-480*  E / 1 / 3 / 3-480*  E / 1 / 3 / 3-480*  E / 1 / 3 / 3-480*
 Approx. Time Up 11 sec.  11 sec.  23 sec.  23 sec.
 Approx. Time Down 15 sec.  14 sec.  36 sec.  36 sec.
 Approx. Ship Weight 606 lbs.  529 lbs.  1,109 lbs.  1,238 lbs.

Downloads

Flyer
